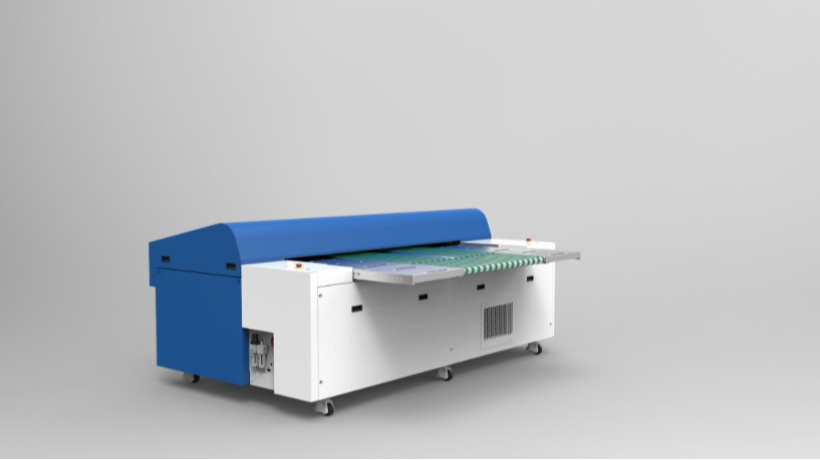

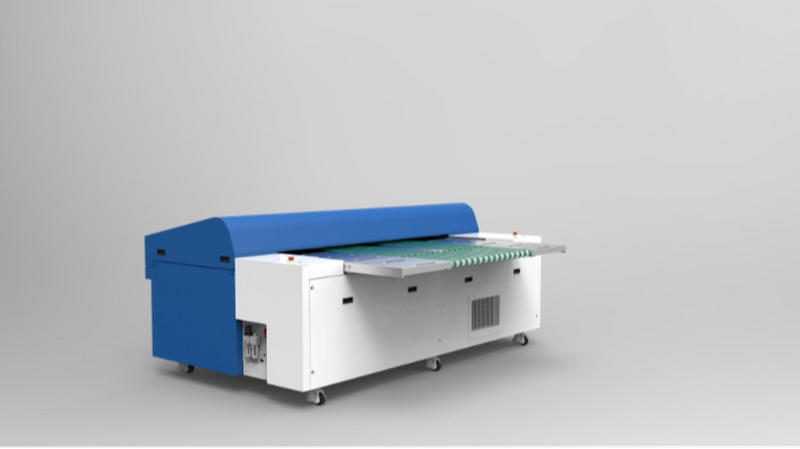

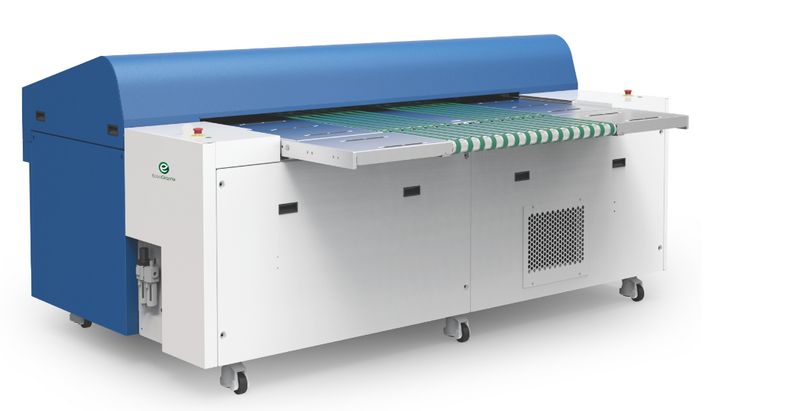

T1880QF T1880QV T1880QX
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | T1880QF | T1880QV | T1880QX |
| Exposing Method | External drum | ||
| Imaging System | 830nm laser | ||
| Output Speed | 17 plates/hour | 20 plates/hour | 24 plates/hour |
| 1,880×1,370mm, Plate sensitivity: 100mJ/cm2 | |||
| Plate Size | Max.1,880×1.370mm.,Min.1,030×770mm. | ||
| Exposure Size | Max.1,880×1.370mm.,Min.1,030×754mm. | ||
| Plate Thickness | 0.25mm-0.4mm | ||
| Resolutions | Standard:dual resolutions 2,400dpi and 1,200dpi,or2,540dpi and 1,270dpi(Option) Variable high resolution option: maximum up to 10,000dpi at fast scan direction | ||
| Repeatability | ±0.005mm | ||
| Interface | Optical fiber/ GB Ethernet | ||
| Plate Loading | Manual | ||
| Net Weight | 1,800KG | ||
| Device Size | 2,760×2,115×1,170mm.(W×L×H) | ||
| Power Supply | Three phases:380V, Max power (Peak value):6.5W | ||
| Environment | Operating temperature range:15-30℃ Recommended temperature:21-25℃ Humidity: 40%-70% | ||
