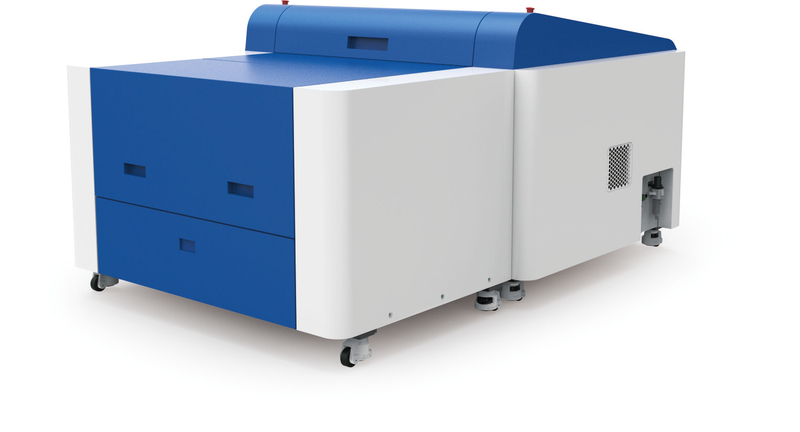

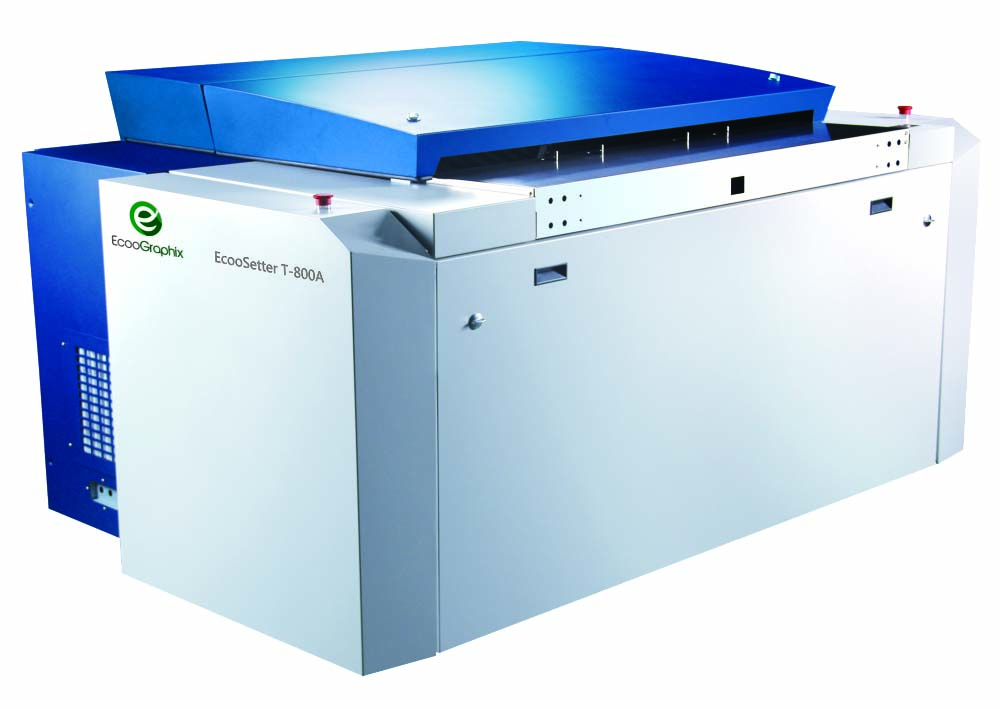

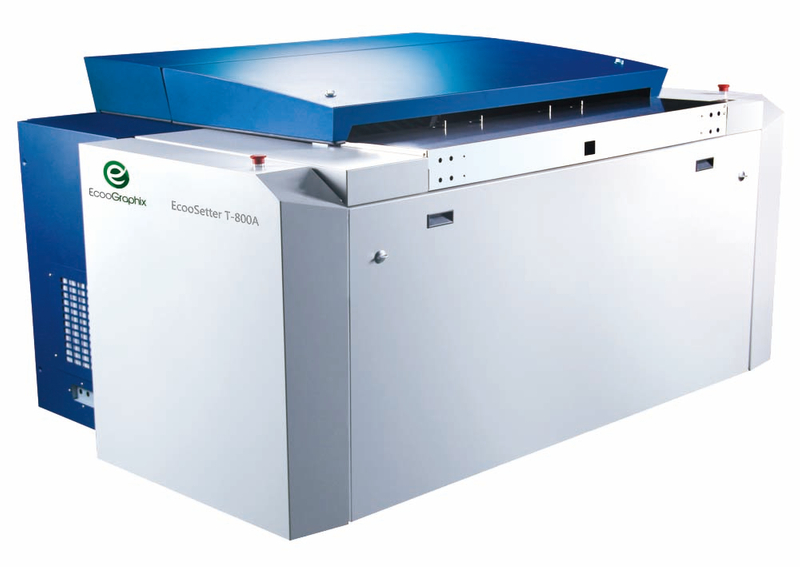

UV800EA UV800SA UV800FA UV800XA T800EA T800SA T800FA
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | UV800EA | UV800SA | UV800FA | UV800XA | T800EA | T800SA | T800FA |
| Exposing method | External drum | ||||||
| Imaging System | 32-channel | 48-channel | 64-channel | 128-channel | 32-channel | 48-channel | 64-channel |
| Discrete 405nm laser | Discrete 830nm laser | ||||||
| Max. Output Speed | 16 plates/hour | 22 plates/hour | 28 plates/hour | 45 plates/hour | 16 plates/hour | 22 plates/hour | 28 plates/hour |
| 1,030x800mm., Plate sensitivity:40mJ/cm2 | 1,030x800mm.Plate sensitivity:100mJ/cm2 | ||||||
| Plate Size | Max.1,163×940mm.,Min.400×300mm. | ||||||
| Exposure Size | Max.1,163×924mm.,Min.400×284mm. | ||||||
| Plate Thickness | 0.15mm.-0.3mm. | ||||||
| Resolutions | Standard resolutions 2.400dpi | ||||||
| Repeatability | ±0.005mm | ||||||
| Interface | Optical fiber /GB Ethernet | ||||||
| Plate Loading | Manual load(P) Automatic load: Single cassete(SCL),Multiple cassette(MCL-8) | ||||||
| Plate Loading Quantity (0.27mm Plate) | Single cassette unit(SCL): 100 plates Multiple cassette unit(MCL-8): 400 plates (4×100 plates/cassette) | ||||||
| Auto slip Paper Collection Bin | Included in Autoloader | ||||||
| Bridge to Processor | Included | ||||||
| Punching Systm | Option:Internal punching (Max,four sets of plate holes) | ||||||
| Net Weight | CTP manual load(P): 890KG CTP with single cassette(SCL):985KG CTP with multiple cassette(MCL-8): 1,350KG | ||||||
| Device Size | CTP manual load(P):1,900x2,510x1,356mm.(W×L×H) CTP with single cassette(ScL):1,900x3,011x1,356mm.(W×L×H) CTP with multiple cassete(MCL-8):1,900x3,267x1,356mm.(W×L×H) | ||||||
| Power Supply | CTP manual load(P): Single phase: 220V,Power: 3.8KW(Peak value),1.5KW (Average) CTP with single cassette(ScL): Single phase: 220V,Power: 4.2KW(Peak value),2KW(Average) CTP with multiple cassette(MCL-8): Single phase: 220v,Power: 4.6KW(Peak value),2.5KW (Average) | ||||||
| Environment | Operating temperature range:15-30C Recommended temperature:21-25C Humidity:40%-70% | ||||||
