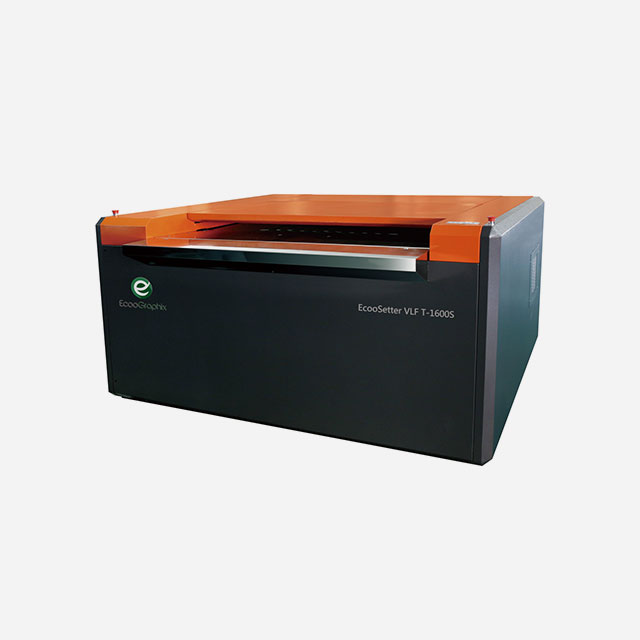

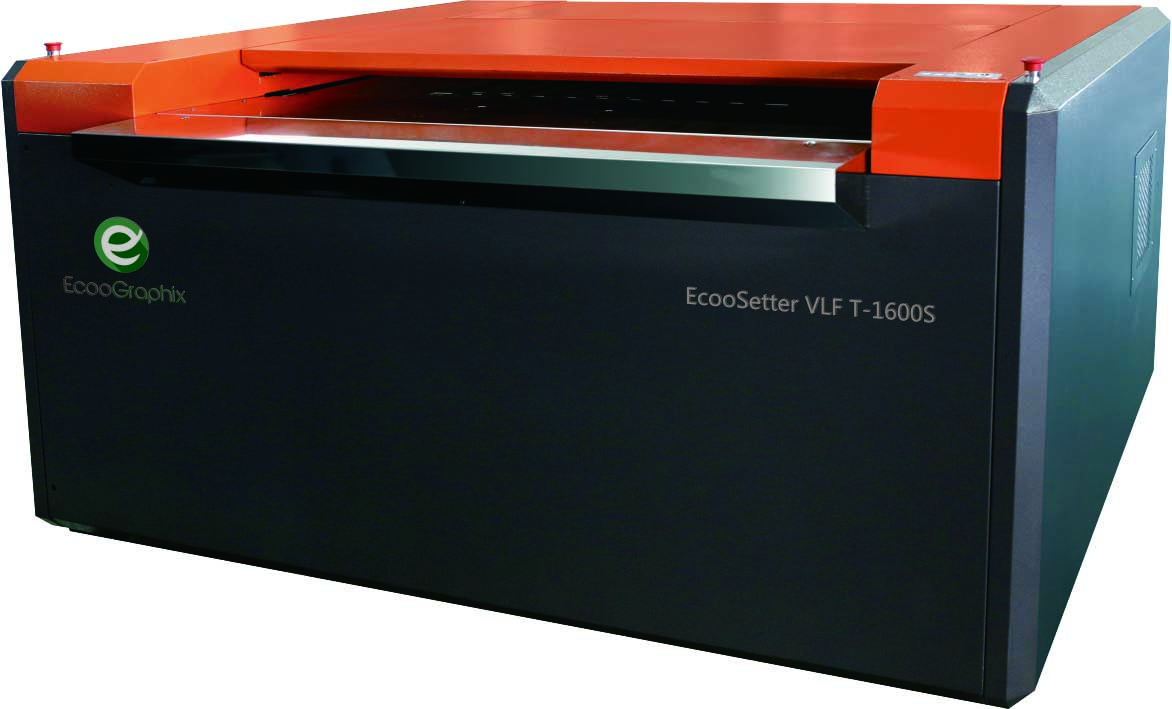

UV1600S T1600S
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | UV1600S | T1600S |
| Exposing Method | External drum | |
| Imaging System | 64 Channels | |
| Discrete 405nm laser | Discrete 830nm laser | |
| Output Speed | 16 plates/hour | 16 plates/hour |
| 1,470 mm×1,180mm, Plate sensitivity: 40mJ/cm2 | 1,470mm×1,180mm, Plate sensitivity: 100mJ/cm2 | |
| Plate Size | Max.1,470×1,180mm.,Min.300×400mm. | |
| Exposure Size | Max.1,470×1,164mm.,Min.300×384mm. | |
| Plate Thickness | 0.15mm.-0.3mm or 0.25mm.-0.4mm(0ption) | |
| Resolutions | 2,400dpi,1,200dpi (Option) | |
| Repeatability | ±0.005mm | |
| Interface | USB2.0/USB3.0(USB2.0 is recommendd) | |
| Plate Loading | Manual or automatic with single cassette autoloader | |
| Net Weight | 1,400KG | |
| Device Size | 2,355×1,910×1,217mm.(W×L×H) | |
| Power Supply | Single phase: 220v, Max power (Peak value): 5.5KW | |
| Environment | Operating temperature range:15-30℃ Recommended temperature:21-25℃ Humidity: 40%-70% | |
