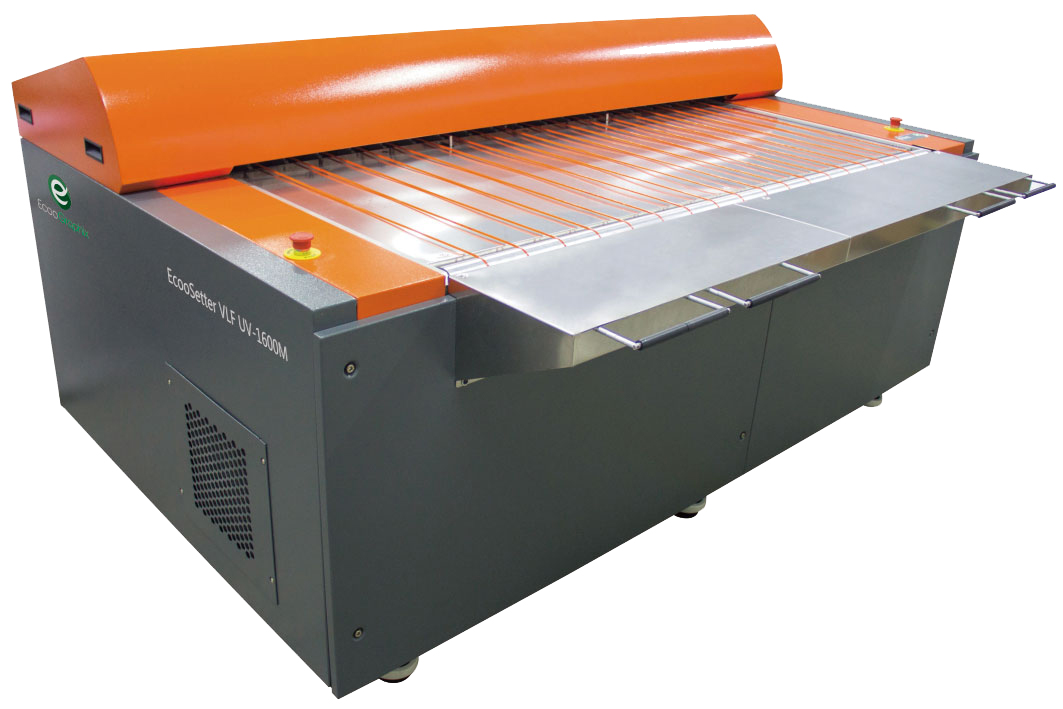

T1600MF T1600MV T1600MX UV1600MX
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | T1600MF | T1600MV | T1600MX | UV1600MX |
| Exposing Method | External drum | |||
| Imaging System | 830nm laser | 128 channels | ||
| Discrete 405nm laser | ||||
| Output Speed | 19 plates/hour 23 plates/hour | 28 plates/hour | 22 plates/hour | |
| 1.630×1.325mm, Plate sensitivity: 100mJ/cm2 | 1,630x1,325mm, Plate sensitivity: 40mJ/cm2 | |||
| Plate Size | Max.1,680×1,350mm.,Min.550×650mm. | |||
| Exposure Size | Max.1,680×1,334mm.,Min.550×634mm. | |||
| Plate Thickness | 0.25mm-0.4mm | |||
| Resolutions | Standard: dual resolutions 2,400dpi and 1,200dpi, or 2.540dpi and 1.270dpi (Option) Variable high resolution option: maximum up to 10,000dpi at fast scan direction | 2,400dpi (optional 1,200dpi) | ||
| Repeatability | ±0.005mm | |||
| Interface | USB2.0 or USB3.0 Optical fiber/GB Ethernet (USB2.0 is recommended) | |||
| Plate Loading | Manual or automatic with single cassette autoloader | |||
| Punching System | Option: Internal punching (Max.four sets of plate holes) | Unsupported | ||
| Net Weight | 1,800KG | |||
| Device Size | CTP without punching system: 2,400×1,760×1,100mm.(W×L×H) CTP with punching system: 2,400×2,020×1,180mm.(W×L×H) | |||
| Power Supply | Single phase: 220V; Maximum power (peak value): 4.5KW | |||
| Environment | Operating temperature range:15-30C Recommended temperature:21-25℃ Humidity: 40%-70% | |||
