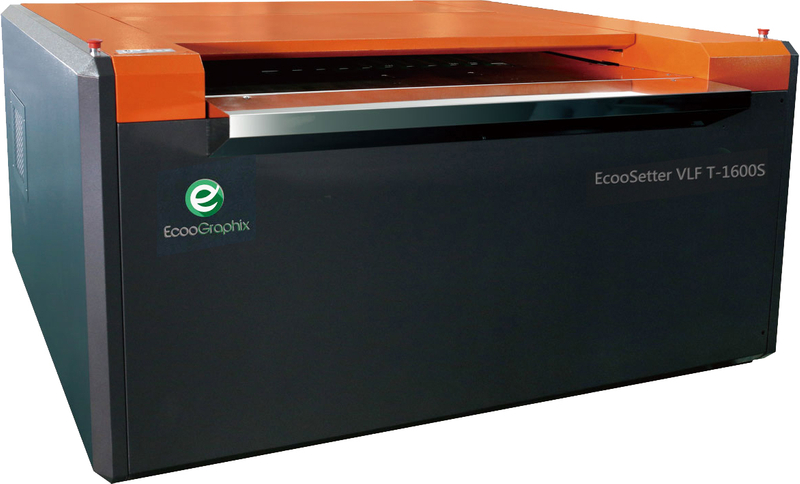

T1600SF T1600SV T1600SX U1600SX
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | T1600SF | T1600SV | T1600SX | U1600SX |
| Exposing Method | External drum | |||
| Imaging System | 830nm laser | 128-channel | ||
| Discrete 405nm laser | ||||
| Output Speed | 23 plates/hour | 28 plates/hour | 33 plates/hour | 27 plates/hour |
| 1,470 mm×1,180mm, Plate sensitivity: 100mJ/cm2 | 1,470mm×1,180mm, Plate sensitivity: 40mJ/cm2 | |||
| Plate Size | Max.1,470×1,180mm.,Min.300×400mm. | |||
| Exposure Size | Max.1,470×1,164mm.,Min.300×384mm. | |||
| Plate thickness | 0.15 mm.-0.3 mm or 0.25 mm.-0.4 mm (Option) | |||
| Resolutions | Standard: dual resolutions 2,400dpi and 1,200dpi, or 2,540dpi and 1,270dpi (Option) Variable high resolution option: maximum up to 10,000dpi at fast scan direction | 2,400dpi, 1,200dpi (Option) | ||
| Repeatability | ±0.005mm | |||
| Interface | Optical fiber /GB Ethernet | USB2.0/USB3.0 (USB2.0 is recommended) | ||
| Plate Loading | Manual or automatic with single cassette autoloader | |||
| Net Weight | 1,400KG | |||
| Device Size | 2,355×1,910×1,217mm(W×L×H) | |||
| Power Supply | Single phase: 220V, Max power (Peak value): 5.5kW | |||
| Environment | Operating temperature range:15-30℃ Recommended temperature:21-25C Humidity: 40%-70% | |||
