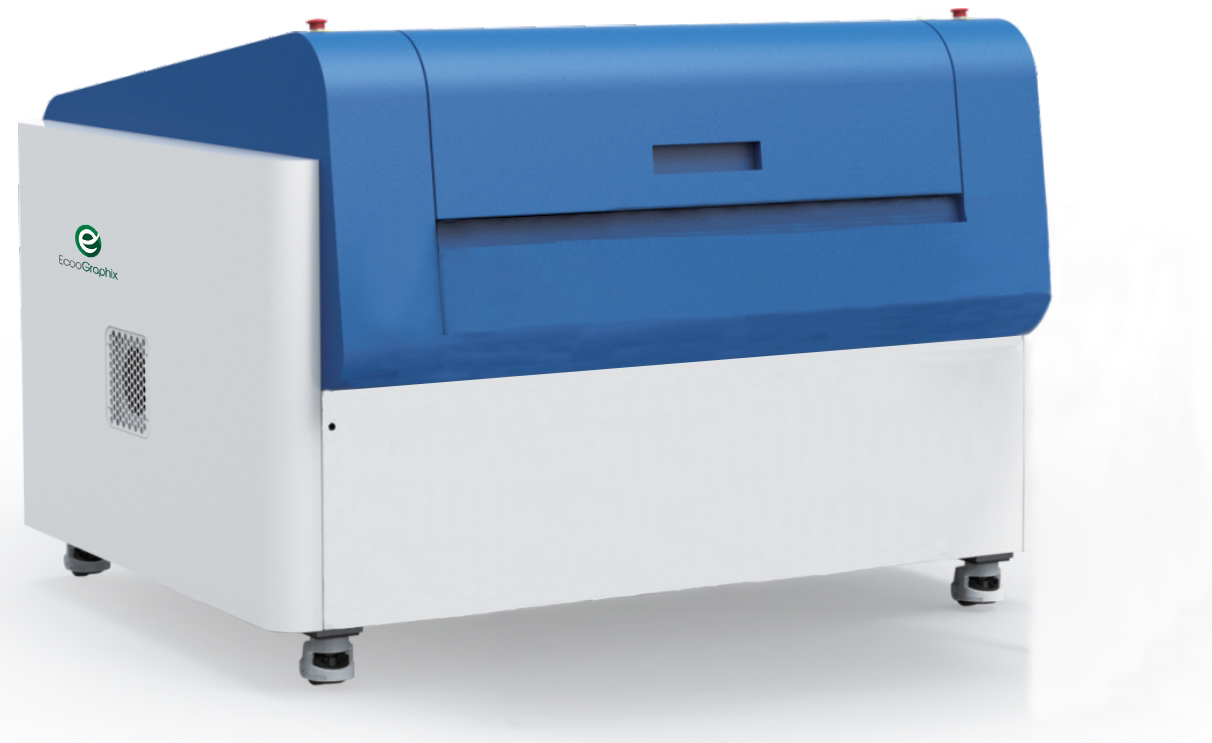

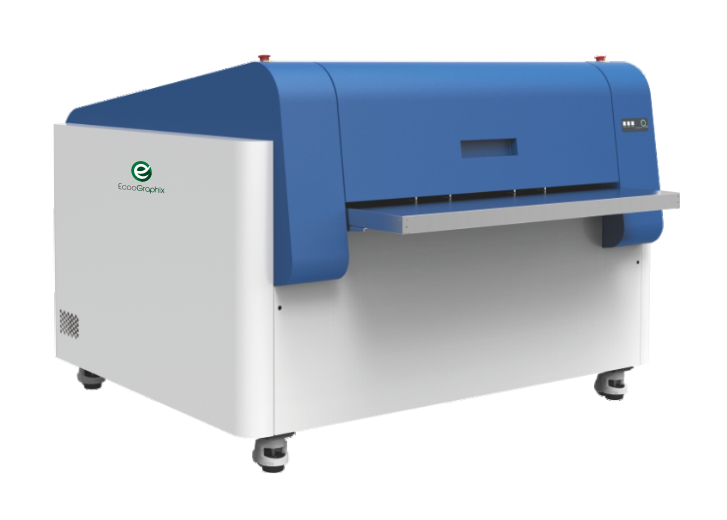

T400QF T400QV T400QX
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | T400QF | T400QV | T400QX |
| Exposing Method | External drum | ||
| Imaging System | 830nm laser | ||
| Max. Output Speed | 50 plates/hour | 60 plates/hour | 70 plates/hour |
| 780×660mm., Plate sensitivity: 100mJ/cm2 | |||
| Plate Size | Max.800×660mm.,Min.300×300mm. | ||
| Exposure Size | Max.800×644mm.,Min.300×284mm. | ||
| Plate Thickness | 0.15mm-0.3mm | ||
| Resolutions | Standard: dual resolutions 2,400dpi and 1,200dpi.or2,540dpi and 1,270dpi (Option) Variable high resolution option: maximum up to 10,0dpi at fast scan direction | ||
| Repeatability | ±0.005mm | ||
| Interface | Optical fiber/ GB Ethernet | ||
| Plate Loading | Manualload(P) Automatic load: Single cassette(SCL) | ||
| Plate Loading Quantity (0.27mm Plate) | Single cassette unit(SCL): 100 plates | ||
| Auto slip Paper collection Bin | Included in Autoloader | ||
| Bridge to Processor | Included | ||
| Punching System | Option: Internal punching (Max. three sets of plate holes) | ||
| Net Weight | CTP manual load(P): 690KG CTP with single cassette(SCL): 765KG | ||
| Device Size | CTPmanualload(P):1,537×2,332×1,341mm.(W×L×H) CTP with single cassette(SCL):1,537×2,541×1,341mm.(W×L×H) | ||
| Power Supply | CTPmanual load(P):Single phase:220V,Power:2.8KW(Pakvalu),1.2KW(Averge) CTPwith singlecassete(SL):Single phase:2V,Power:3.2KW(Pak valu),1.KW(Average) | ||
| Environment | Operating temperature range:15-30C Recommended temperature:21-25C Humidity:40%-70% | ||
