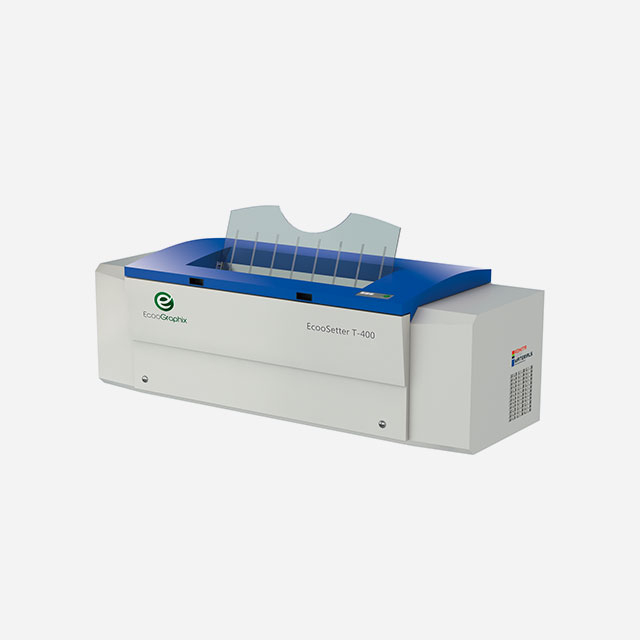

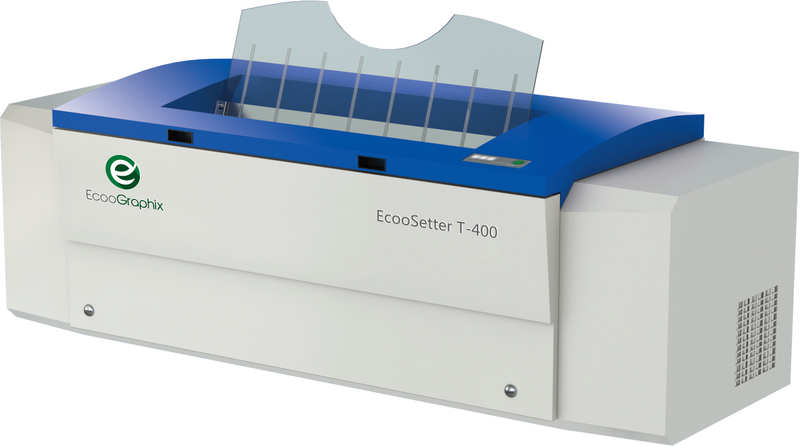

ECOOSETTER 400 SERIES

The EcooGraphix T400 series Thermal CTP is designed for A1, A2, or B2 paper size newspaper and commercial printing, with an output speed ranging from 16 to 28 plates per hour (PPH). It features manual operation and is very user-friendly. With EcooGraphix CTP, customers benefit from excellent image quality, high stability, space-saving design, and increased operational flexibility.

Model:
UV400E,S,F/T-400E,S,F
Brand:
EcooGraphix

Availability:

Quantity:



Inquire Add to Basket

Thermal CTP Computer to Plate Printing Machine

Product Description

Specifications

Model	UV400E	UV400S	UV400F	T400E	T400S	T400F
Exposing Method	External drum	External drum	External drum	External drum	External drum	External drum
Imaging System	24-channels Discrete 405nm laser	32-channels Discrete 405nm laser	48-channels Discrete 405nm laser	24-channels Discrete 830nm laser	32-channels Discrete 830nm laser	48-channels Discrete 830nm laser
Output Speed	16 sheets/hour	22 sheets/hour	28 sheets/hour	16 sheets/hour	22 sheets/hour	28 sheets/hour
Plate Sensitivity	780x660mm, 40mJ/cm²	780x660mm, 40mJ/cm²	780x660mm, 40mJ/cm²	780x660mm, 100mJ/cm²	780x660mm, 100mJ/cm²	780x660mm, 100mJ/cm²
Plate Size	Max.800x660mm, Min.300x300 mm.
Exposure Size	Max.800x644mm, Min.300x284 mm.
Plate Thickness	0.15mm-0.3mm
Resolution	2,400dpi, 1,200dpi (Option)
Repeatability	±0.005mm
Interface	USB2.0/USB3.0 (USB2.0 recommended)
Plate Loading	Manual
Net Weight	800KG
Device Size	1,900×1,200×1,000mm (W×L×H)
Power Supply	Single phase: 220v, Max power: 4kW
Environment	Operating temperature: 15–30°C Recommended: 21–25°C Humidity: 40%–70%
