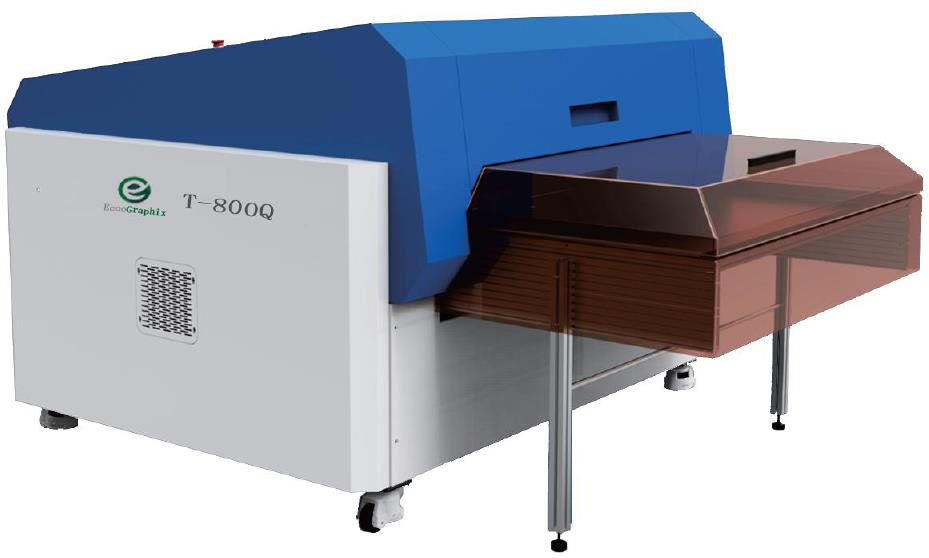

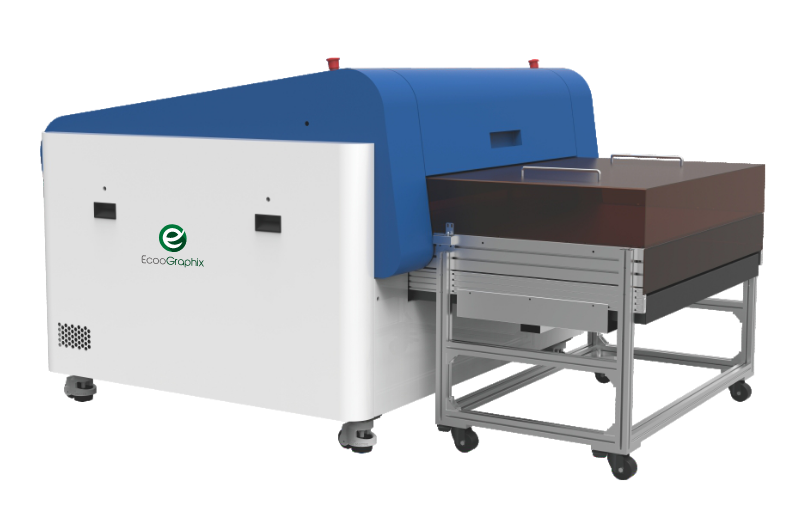

T800QF T800QV T800QX
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | T800QF | T800QV | T800QX |
| Exposing Method | External drum | ||
| Imaging System | 830nm laser | ||
| Max.Output Speed | 35 plates/hour | 45 plates/hour | 55 plates/hour |
| 1,030×800mm.,Plate sensitivity:100mJ/cm2 | |||
| Plate Size | Max.1,163×940mm.,Min.400×300mm. | ||
| Exposure Size | Max.1,163×924mm.,Min.400×284mm. | ||
| Plate Thickness | 0.15mm-0.3mm | ||
| Resolutions | Standard: dual resolutions2,400dpi and1.200dpi,or2,540dpi and 1.270dpi (Option) Variable high resolution option: maximum up to 10,000dpi at fast scan direction | ||
| Repeatability | ±0.005mm | ||
| Interface | Optical fiber/GB Ethernet | ||
| Plate Loading | Manual load(P) Automatic load: Single cassette(SCL), Multiple cassette(MCL-8) | ||
| Plate Loading Quantity (0.27mm Plate) | Single cassette unit(SCL): 100 plates Multiple cassette unit(MCL-8): 400 plates (4×100 plates/casette) | ||
| Auto Slip Paper Collection Bin | Included in Autoloader | ||
| Bridge to Processor | Included | ||
| Punching System | Option:lnternal punching(Max.four sets of plate holes) | ||
| Net Weight | CTP manual load(P): 890KG CTP with single cassette(SCL): 985KG CTP with multiple cassete(MCL-8): 1,350KG | ||
| Device Size | CTP manual load(P):1,900×2,510×1,356mm.(W×L×H) CTPwith single cassette(SCL):1,900×3,011×1,356mm.(W×L×H) CTP with multiple cassete(MCL-8):1,900×3,267×1,356mm.(W×L×H) | ||
| Power Supply | CTP manual load(P): Single phase: 220V, Power: 3.8KW(Peak value),1.5KW (Average) CTP with single cassette(SCL): Single phase:220V, Power: 4.2KW(Peak value),2KW (Average) CTP with multiple cassette(MCL-8): Single phase: 220v,Power: 4.6KW(Peak value),2.5KW (Average) | ||
| Environment | Operating temperature range:15-30℃ Recommended temperature:21-25C Humidity:40%-70% | ||
