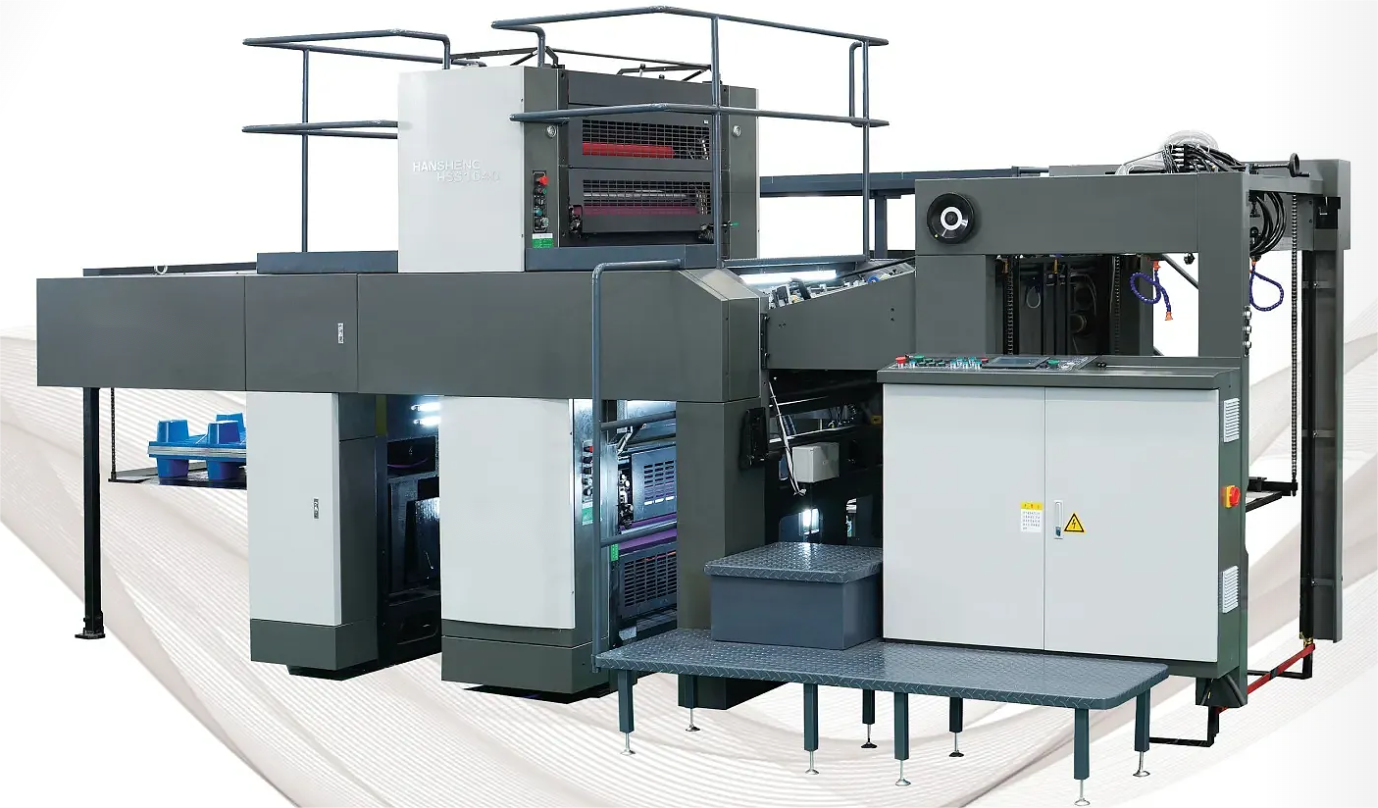

HSS 1040 high-speed A1+ double-side single color offset press
A1 Offset Printing Machine | |
Model | Ecoo HSS1040 |
Max. Sheet size(mm) | 720*1040mm |
Max. printing size(mm) | 710*1040mm |
Min. Sheet size(mm) | 393*546mm |
Machine speed | 13000sph |
Paper thickness | 40-200 g/m2 |
Plate size | 800*1055*0.3mm |
Packing size | 735*1055*0.15-0.20mm |
Blanket size | 930*1055*1.95mm |
Max.feeder pile height | 1800mm |
Max.delivery pile height | 1150mm |
Main motor power | 15kw |
Machine size | 5700*3800*2900mm |
Weight | 16500kg |
Plate adjusting amount (axial) | -2.5--+2.5mm |
Plate adjusting amount (circumferential) | -0.8--+0.8mm |
Plate adjusting amount (slanti) | -0.3--+0.3mm |
Standard configuration:
1 High speed paper separation mechanism
2 Mechanical double sheet inspection
3 Alloy steel gear
4 Precision tapered roller bearings for printing cylinders adopts
5 Grippers closed at cam's high point, open type impressing transfer cylinders
6 Plate positioning system
7 Remote plate cylinder axial and circumferential adjustment
8 Reserved assembly space for diagonal plateadjusting
9 Visual human-machine interface operatingsystem
10 Automatic safety and fault detection system
10 Pneumatic control for ink rollers and dampening rollers, and impressing
11 Anti-static device
12 Alcohol dampening system and solution-ink control system
13 Ultrasonic double-sheets controller
14 Side gauge fine-tuning
15 Mobile sheeting supporting
