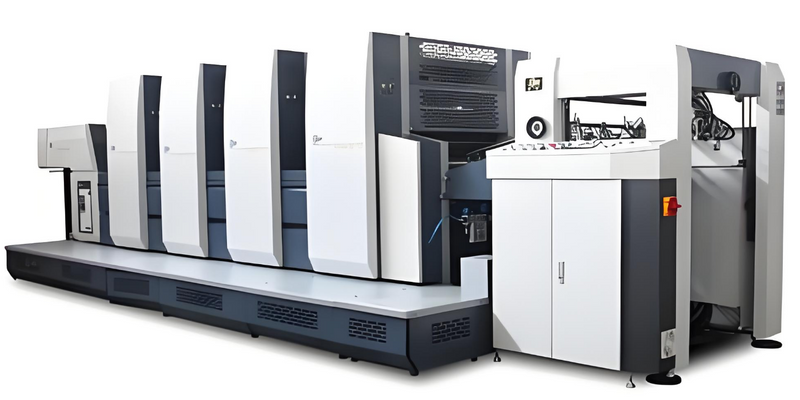

JD41050- Four-Color A1 Offset Printing Machine

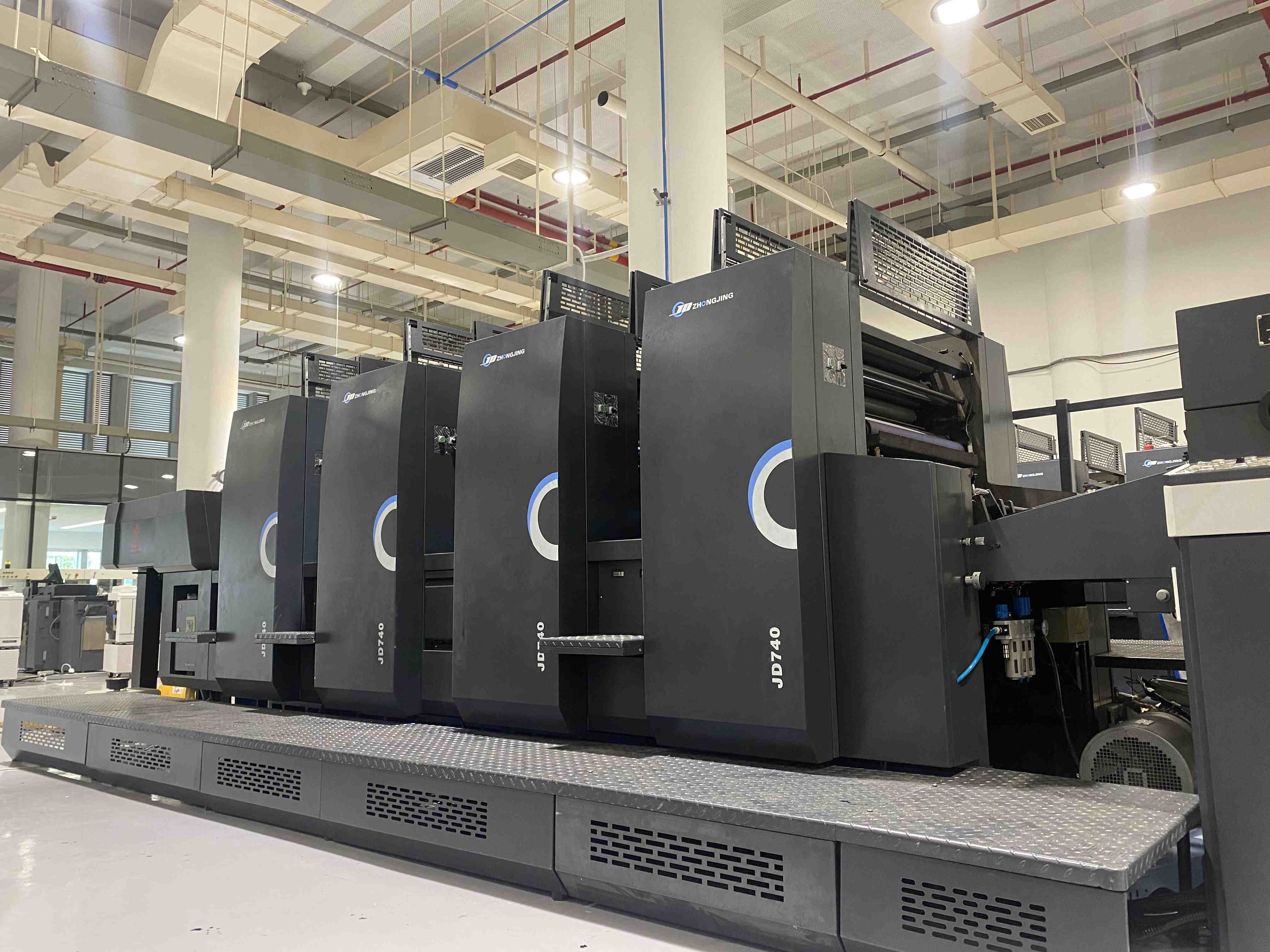

JD5740 is the high speed A2 Size Offset Printing Press for book printing,made in China. With many installations worldwide.Max Sheet Size 740x1050mm.
Configuration:
Double diameter impression and paper transfer cylinder
Semi-automatic plate loading (unloading and loading of four plates for 2 minutes and 40 seconds)
Computer automatic pressure regulation (paper pressure preset)
Computer ink control
CIP3 interface
Radial axial oblique electric plate drawing
Parallel double cylinder pneumatic clutch pressure
Vacuum suction paper conveyor
Ultrasonic double sheet detection
Ink outlet roller motor direct drive
Electronic powder spraying
Industrial bus (CC-Link) electrical system
High-precision photoelectric punching machine
Stainless steel thermal spraying treatment on the surface of impression and plate cylinder
English version of operation procedure and interface
Automatic Impression Cylinder Washing
Automatic Roller Washing
Compressor(s) for supplying the printing machine with vacuum;
Machine for punching holes for fixing forming plates;
Availability of the necessary additional peripheral equipment, special tools and accessories for commissioning the printing machine and further operation.
Original software required to operate the printing machine.
Supply of a start-up kit of materials for equipment startup;
Accessories:
Printing Plate, Printing Blanket, Offset Inks, Paper, Fountain Solution and other printing chemicals
A1 Offset Printing Machine | |
Model | Ecoo JY 41050 |
Max. Sheet size(mm) | 740*1050mm |
Min. Sheet size(mm) | 360*520mm |
Machine speed | 13000sph |
Paper thickness | 0.06-0.8mm |
Max.image area | 720*1020mm |
Plate size | 788*1050*0.3mm |
Blanket size | 910*1060*1.95mm |
Max.feeder pile height | 1180mm |
Max.delivery pile height | 1080mm |
Motor power | 37kw |
Machine size | 9560*3450*2150mm |
Weight | 36000kg |
By our reliable product quality and professional technical support service, we gained tenders in Uganda, Tanzania and so on. The tenders are very hard and competitive projects, can only be won by the qualified , professional and competitive supplier.
