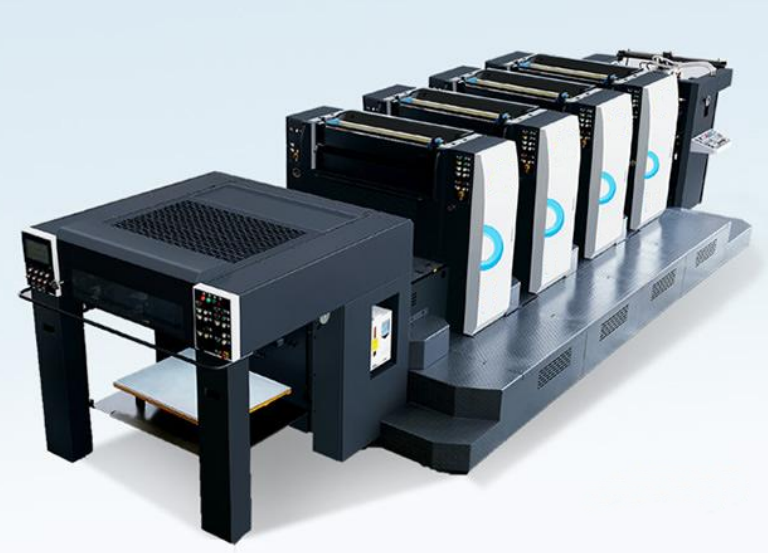

Ecoo JY 41050 Four Color Offset Printing Machine

Ecoo JY 41050 Four Color Offset Printing Machine

Instructions: JY41050 folio four-color offset printing machine features short water and ink roller distances to enable a more economical printing with low, or no, alcohol. Suitable for ultra-wide format and 0.8 mm thick paper, 13,000 sheets per hour for high production packaging printing. 1. Optimized for ultra-wide and extra-thick paper substrates Five separate fiber inspection sensors are individually located at the paper infeed to identify the feeding errors and lock the paper. The paper-pressing mechanism is equipped with a roller which effectively reduces possible scratches on the back of the paper. With the vacuum suction and the floating paper-feeding technology, the operator can easily adjust the lateral orientation of the paper by simply adjusting the air pressure. The location of the air duct and the hole positions on the air guide plate are precisely engineered to minimize scratches on the paper. 2. Operator peace of mind After viewing the printing proof, the operator can adjust the ink at any time online through the central ink console. Thousands of ink settings can be stored in the ink console and replicated easily. The high-resolution touch screen allows the operator to adjust the process effortlessly.
