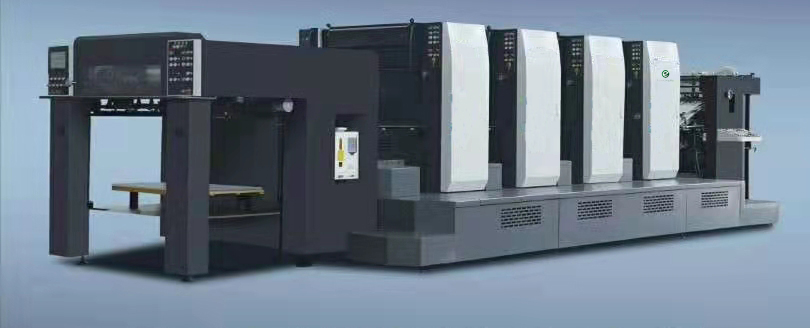

Ecoo JY 44 Four Color Offset Printing Machine
Instructions:
It is equipped with CC-LINK technological bus module from Mitsubishi.
Double-diameter impression cylinder and transfer drum can reduce the times of sheet
take-over between print units.
The plate cylinder can be adjusted in the circumferential direction, lateral direction and
diagonal direction.
Features:
1 .The semi APC (Automatic Plate Changer) shortens the make-ready time.
2. To preset paper thickness when printing different kinds of paper. To adjust printing
pressure in every unit automatically, quickly and synchronously.
3. With non-stop feeder, piles are changed at production speed. It saves a great deal of
time when running thick paper and long version work offline.
4.It is equipped with CC-LINK technological bus module from Mitsubishi.
5. Double-diameter impression cylinder and transfer drum can reduce the times of sheet
take-over between print units.
6. The plate cylinder can be adjusted in the circumferential direction, lateral direction
and diagonal direction.
7. There are five rollers on the plate cylinder. There is an intermediate roller in alcoholic
damping system, which can eliminate the “ghost” image, achieve the quick ink-water
balance and reduce paper consumption.
8. There are 23 zones in split (staggered) ductor.
A2 Offset Printing Machine | ||
Model | Ecoo JY 44 | |
Max. Sheet size(mm) | 740X540mm | |
Min. Sheet size(mm) | 273X393mm | |
Paper thickness | 0.06-0.6mm | |
Max.image area | 730X528mm | |
Speed | 12000S/H | |
Plate size | 755x677mm | |
Blanket size | 740x760x1.9mm | |
Max.feeder pile height | 940mm | |
Max.delivery pile height | 780mm | |
Motor power | 23kw | |
Machine size | 7380×2550×1950mm | |
Weight | 19700kg | |
Configuration:
Double diameter impression and paper transfer cylinder
semi-automatic plate loading (unloading and loading of four plates for 2 minutes and 40 seconds)
computer automatic pressure regulation (paper pressure preset)
computer ink control
CIP3 interface
radial axial oblique electric plate drawing
parallel double cylinder pneumatic clutch pressure
vacuum suction paper conveyor
ultrasonic double sheet detection
ink outlet roller motor direct drive
electronic powder spraying
industrial bus (CC-Link) electrical system
high-precision photoelectric punching machine
Stainless steel thermal spraying treatment on the surface of impression and plate cylinder
English version of operation procedure and interface
export-oriented packaging
