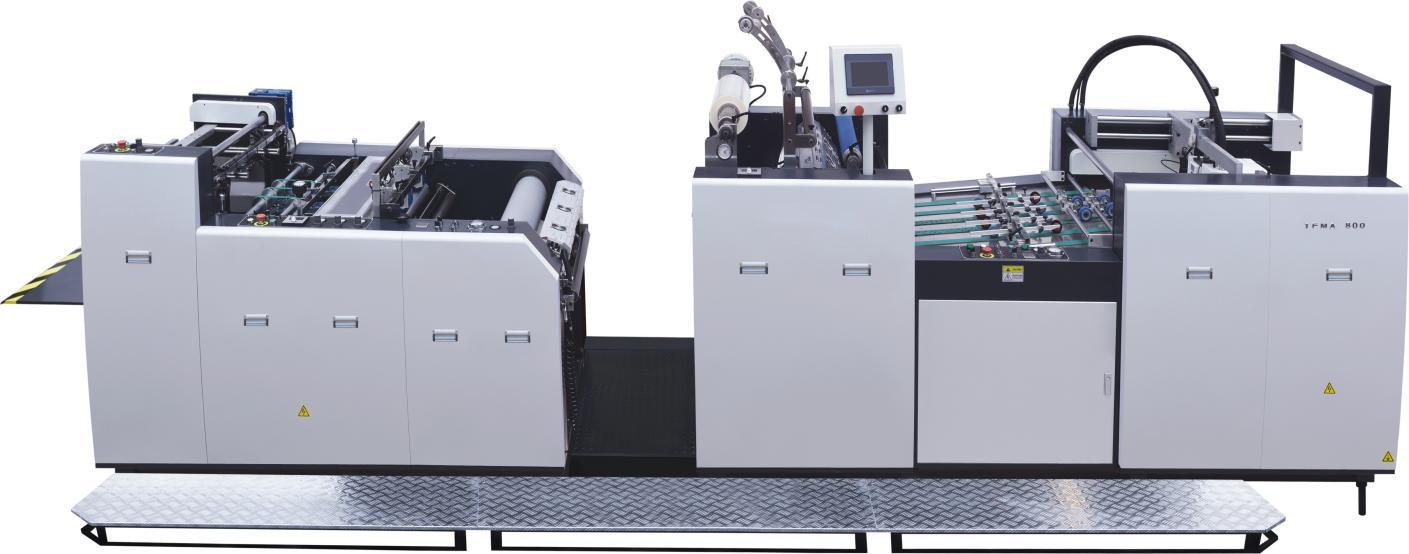

Ecoo YFMA-590 Automatic Laminating Machine
Machine function
YFMA-590 fully Automatic laminating machine as a professional equipment used for plastic film laminating on the surface of paper printer matter.
F Thermal laminating (Pre-coated /thermal film)
F Film: OPP, PET, PVC, METALIC, etc.
Application range
Widely applicable for laminating in packaging, paper box, books, magazines, calendars, carton, handbags, Gift box, Wine packaging paper improving the printing matter grades, and achieve the purpose of dust-proof, water-proof, oil proof. It’s the best choice for printing and laminating enterprises of all scales.
Specifications:
Film Laminating Machine | |
Model | Ecoo YFMA-590 |
Max. Sheet(W x L) | 590*760mm |
Min. Sheet(W x L) | 200*240mm |
Machine Speed | oneside：0~80m/min |
Paper Thickness | 100~450g/m2 |
Voltage | 380V |
Paper feed height | 680mm |
Paper stack height | 650mm |
Laminating Temperature | 80-110℃ |
Power required | 18kw |
Dimension(L x W x H) | 5500*1300*1800 mm |
N.W. | 4000kg |
The machine can be customized Configuration:
Main componentsSeriesAccessory NameBrandNote1Pressure rubber rollerJingyangJingYangTaiwan2feeder RUNOffset feeder3BearingHarbin 4Vacuum pumpShanghai Mengxu 5chainHangzhou 6Pneumatic clutchTaiwan Taiwan7Servo motorInovance Shenzhen8Server DriverInovance Shenzhen9Oil hydraulic pumpZhejiang 10electromagnetic heating Shenzhen 11Touch screenWeiluntong 12Pneumatic partsAirtac Taiwan13ButtonOMRONOMRONJapan14Contactor.relaySchneider France15SensorPanasonic Japan16Proximity switchPanasonic Japan17Temperature ControllerOMRONOMRONJapan18Photoelectric switchPanasonic Japan19PLCDelta Taiwan20Frequency converterDelta taiwan Service and Warranty: F Training Content: All machines have been finished all adjustment and test in workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later. F Warranty: 12 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 12 months)
| |
