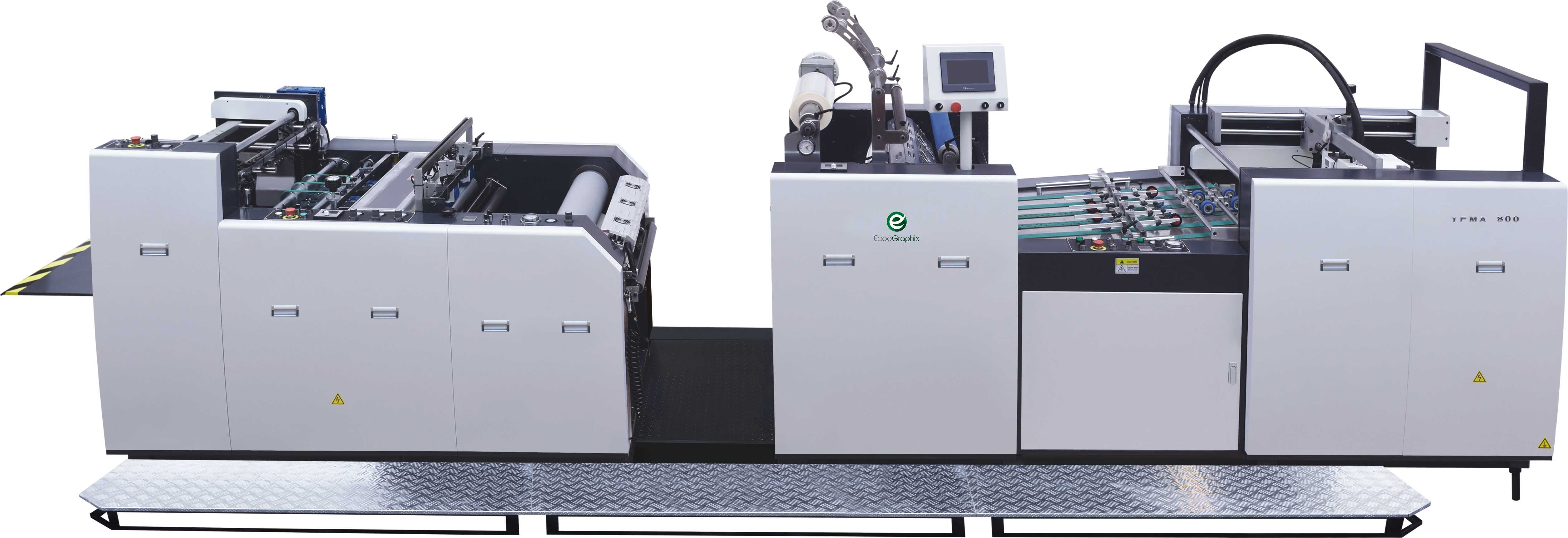

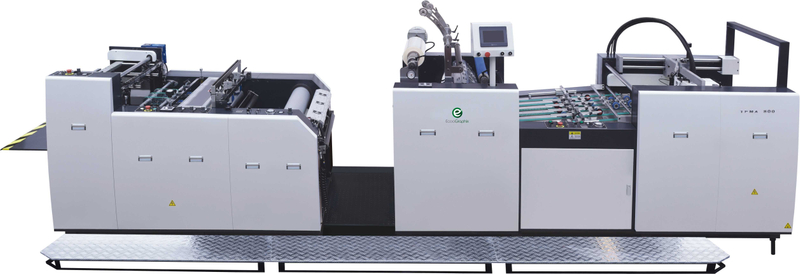

A1 Book Cover Paper Film Laminating Machine
Applications
YFMD-850A is suitable for posters, books,information albums, color box , handbags, etc.
Features
1 Any combination of powerful multi-functional configuration can solve various problems of laminating process!
1：Double-sided laminating (both sides are laminated at the same time) (optional)
2：Dust removal (remove surface dust and surface preheating, enhance surface brightness/mattity/and fit)
3：UV dryer（Lamination has strong fastness, especially to solve the problem of embossing, embossing and embossing of the large solid base film）(optional)
4：Chain knife (cutting of tailless film and high toughness film such as PET and aluminum foil film)(optional)
5：Hot knife (high speed) (Slitting of high toughness films such as tailless film and PET, aluminum foil film)(optional)
6：Corona device (to solve the problem of low corona value, silk screen, paste box, hot stamping, etc.)(optional)
7：Static elimination device (excessive static electricity, large paper adhesion)(optional)
8：Embossing system: various embossing reflects the aesthetics of surface decoration!(optional)
Pre-Coating Film Laminating Machine | |
Model | YFMD-850A |
Max. Sheet(W x L) | 850*1000mm |
Min. Sheet(W x L) | 270*270mm |
Machine Speed（Depending on the material, color and color block size of the printed product, the machine runs at different speeds) | oneside：0~80m/min Double side：0~60m/min（optional） |
Paper Thickness | 100~500g/m2 |
Overlap error | +_2mm |
Paper feed height | 1150mm |
Paper stack height | 1050mm |
Laminating Temperature | 80-110℃ |
Power required (Different configuration, different power) | 28kw |
Dimension(L x W x H) | 10500*1800*2000mm |
N.W. | 10500kg |
