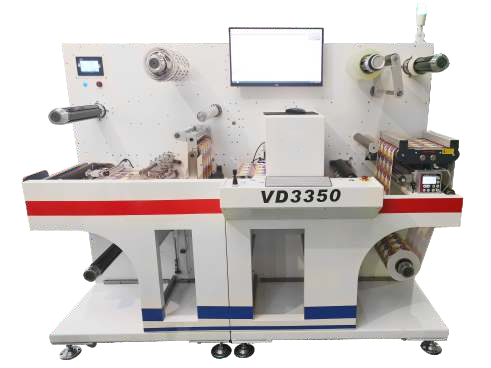

Ecoo VD3350 DIGITAL DIE CUTTING MACHINE

Ecoo VD3350 DIGITAL DIE CUTTING MACHINE

Introduction：

Use the unique and intelligent digital die-cutting technology of our VD3350 high speed digital label due cutter, automatically choose cutting file and adjust the heads distance. Cutting by four heads*3 units simultaneously. You do not need to worry about the production of small and medium batch labels. What is more important is it reduces the manual intervention and greatly improves the work efficiency compared with the previous digital cuttings.

Advantage：

1. Fast and high precision with full-servo motor

2. Fully automatic tension and feeding control

3. Intelligent position, choose file automatically

4. Standard 4 cutting heads distance can be adjusted automatically

5. Support 3 units cutting simultaneously

6. Intelligent cutting with trajectory optimization

Product Detail Presentation:

1 High precision feeding system:

Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.

2 Cold laminating

It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.

3 Digital die-cutting system

VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.

4 CCD identify system

With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.

5 Precision slitting system

Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.

6 The waste removing system

The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.

7 Sheet Cutter

The optional built-in Pc350 Sheet Cutter, can be inline with th main Die-cut ting, to perform the synchronous die-cutting and sheet cutting.

Software Features:

• Running status can be seen in a reartime
• Choose the quantity of the heads based on graphics
• Choose the heads distance automatically

• Support file database

• Intelligent cutting with trajectory optimization

• Auto-generate the working records
