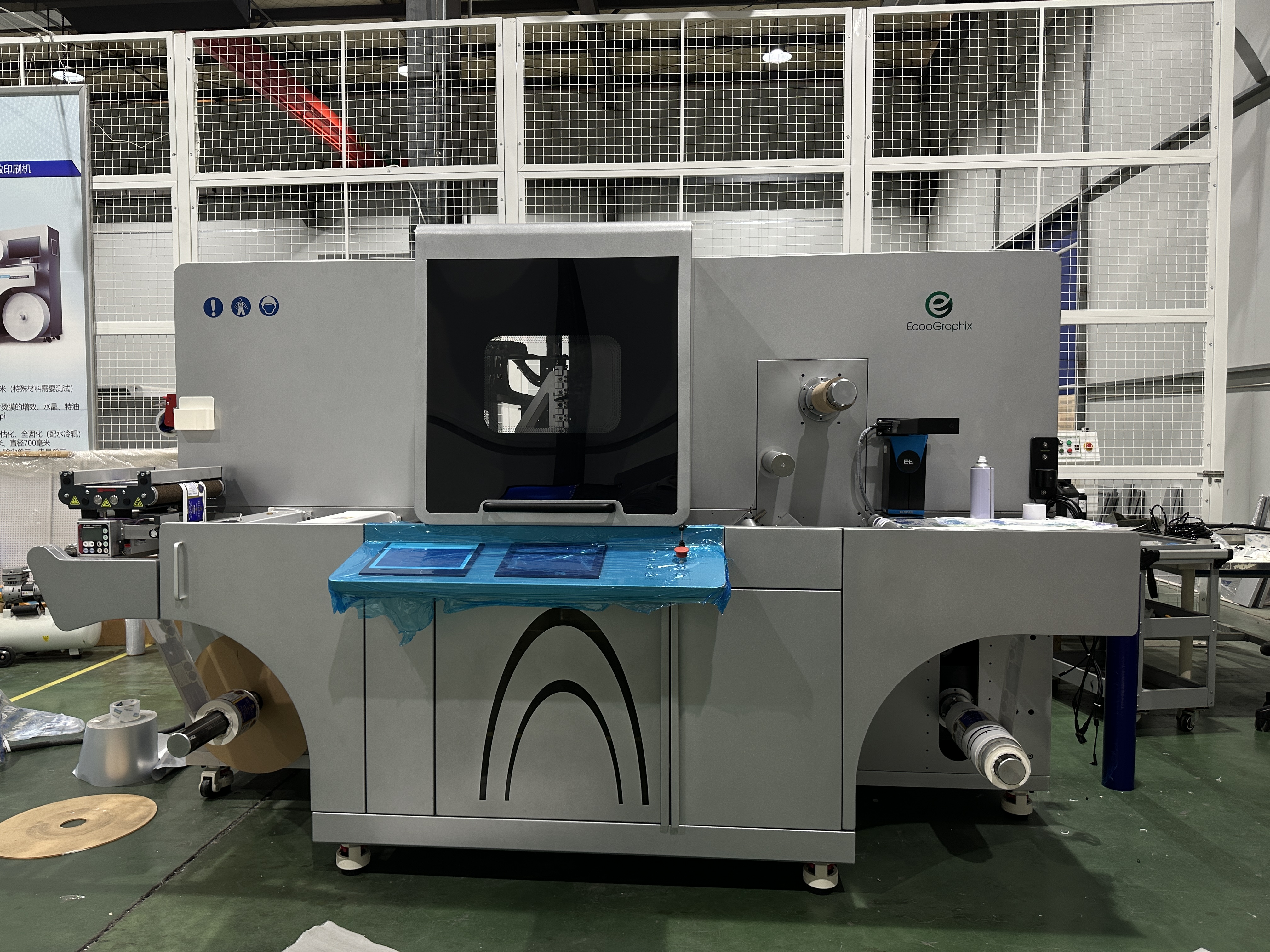

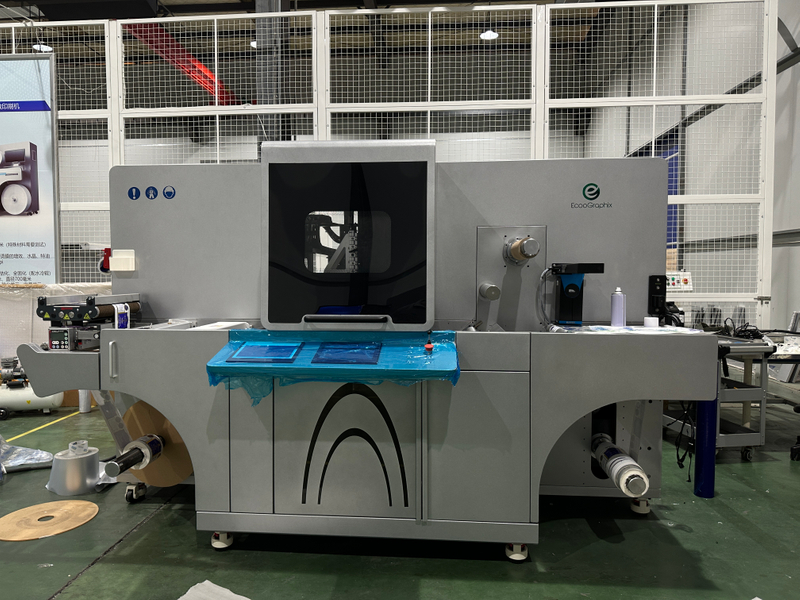

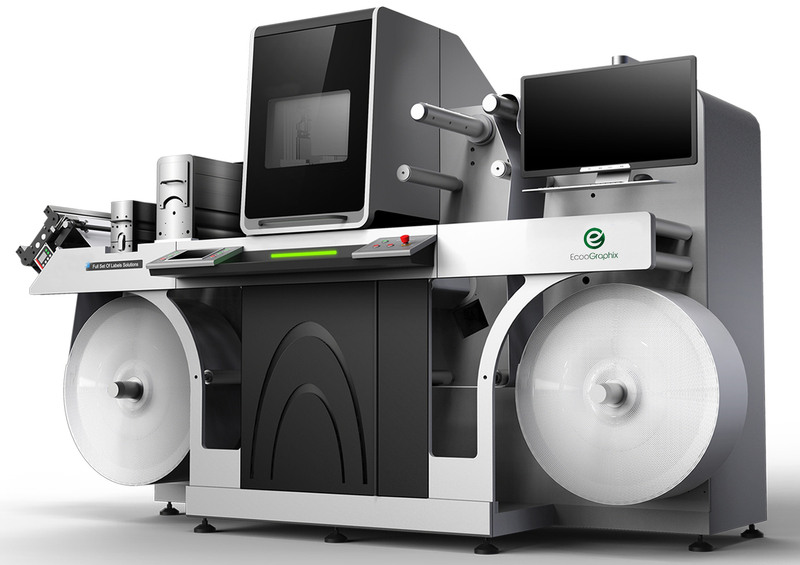

Digital Label Foil Stamping and Varnish Printing Machine
EcooSpark
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, braille printing etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Applications: Wine Labels, Cosmetic Labels, Luxury labels ,Medical labels,Washi Tapes, Stickers ,Pouches and so on.
EcooGraphix EcooSpark Digital Label Foil Stamping and Varnishing Machine | ||
Model EcooSpark | ||
Printing Technology | UV Piezo DoD(drop on demand)-inkjet | |
Resolution | up to 1440*360 dpi | |
Printing speed | 10m/min - 60m/min(depend on polymer layer thickness) | |
Variable Image system | PDF, optimized PDF, Optional barcode system | |
Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files | |
Substrates | Offset, Digital, Plastics, Laminated and coated substrates | |
Printing image width | 288mm (extendable to 350 mm) * 10 m (Length) | |
Polymer | WB-DS-Clear Polymer | |
Polymer layer thickness | From 10 up to 180 microns | |
Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED | |
Unwinder diameter | Max. 700mm, Core 76mm | |
Rewinder diameter | Max. 700mm, Core 76mm | |
Substrates thickness | 30-400 micro | |
Substrates width | Max 330mm | |
Press with Foil station | Machine dimensions (LxHxW) 3500mmx1900mmx1800mm | |
Operating environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity | |
Electrical requirements | Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz Current: Avg. 25 Amps | |
Weight | 2800kg | |
