Specification

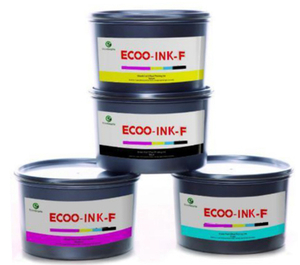

Type | ECOO-IN-F |
Features | Printing speed: 8,000rph-10,000rph Environment friendly Good water/ink balance Rich in printing layer |
Packing | 2.5 kg/tin, 6 tins/carton |
Shelf Life | 3 years(from the production date); product against light and water |
Application | ECOO-IN-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. |
ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
F YELLOW | 6-7 | 35±1 | 15 | 4 | < 10 | >15 |
F MAGENTA | 5.5-6.5 | 34±1 | 15 | 4 | < 10 | >15 |
F CYAN | 6.5-7.5 | 35±1 | 15 | 4 | < 10 | >15 |
F BLACK | 7-8 | 35±1 | 15 | 4 | < 10 | >15 |
Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. | |||||
Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | |||||
Condition of test | Room temperature 25℃, humidity 65%-75% | |||||
ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
F YELLOW | 4 | 5 | 5 | 4 | 4 | 4 |
F MAGENTA | 3 | 5 | 5 | 5 | 4 | 5 |
F CYAN | 7 | 5 | 5 | 5 | 5 | 5 |
F BLACK | 7 | 5 | 5 | 5 | 5 | 5 |
Light Fastness | 1-8 (weak-strong) | |||||
Others | 1-5 (weak-strong) | |||||
