Specification

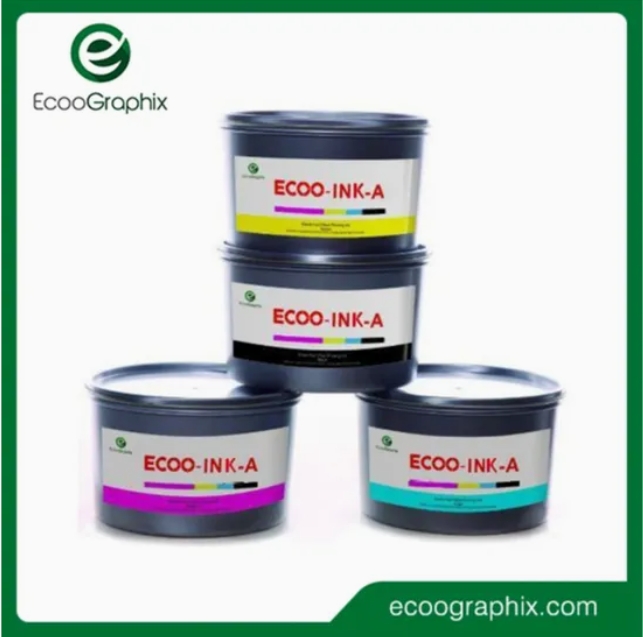

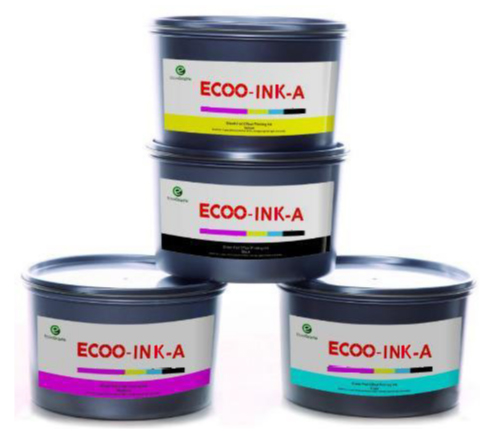

| Type | ECOO-IN-A |
Features | Printing speed: 15000rph-18000rph Anti-skinning performance Good water/ink balance Rich in printing layer Clear and complete in printing dots Quick-drying performance, quick setting, quick turn No need to add any additives, ready for use |
| Packing | 1kg/vacuum canned |
| Shelf Life | 3 years(from the production date); product against light and water |
| Application | ECOO-IN-A printing ink is developed by the latest European technology system. It is made from polymeric, high-soluble resin and lately-invented paste pigment. This product is suitable for printing packaging, advertisement, label, high-quality brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for medium and high-speed printing. |
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | GLOSS | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
| A YELLOW | 8-9 | 39±1 | 12.5 | 85 | 4 | < 8-10 | >48 |
| A MAGENTA | 8.5-10.5 | 40±1 | 12.5 | 70 | 4 | < 8-10 | >48 |
| A CYAN | 9.5-10.5 | 39±1 | 12.5 | 70 | 4 | < 8-10 | >48 |
| A BLACK | 9-10 | 38±1 | 12.5 | 75 | 4 | < 8-10 | >48 |
| Tack Value | The value is measured in 1 minute by inkometer at 32ºC and 400rpm. | ||||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | ||||||
| Condition of test | Room temperature 25ºC, humidity 65% | ||||||
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
| A YELLOW | 3-4 | 5 | 5 | 4 | 4 | 4 |
| A MAGENTA | 3-4 | 5 | 5 | 5 | 4 | 5 |
| A CYAN | 6-7 | 5 | 5 | 5 | 5 | 5 |
| A BLACK | 6-7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) | |||||
| Others | 1-5 (weak-strong) | |||||
