Features:
1、Complete design, accurate installation, high stability, high security, low noise.
2、Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3、High precision intermittent mechanism, high cutting precision, running steadily.
4、Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
5、Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
6、Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
7、Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
8、Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
9、Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
10、Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.
11、Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
12、Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.
13、Adopt industrial tablet PC, touch screen input data, realize automatic programming, greatly saving aluminum foil.
14、Temperature control system has 8 heating area, temperature setting separately, thermostatic control.
15、Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
16、Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

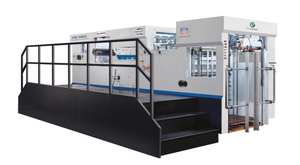

Automatic Die Cutting Machine | |

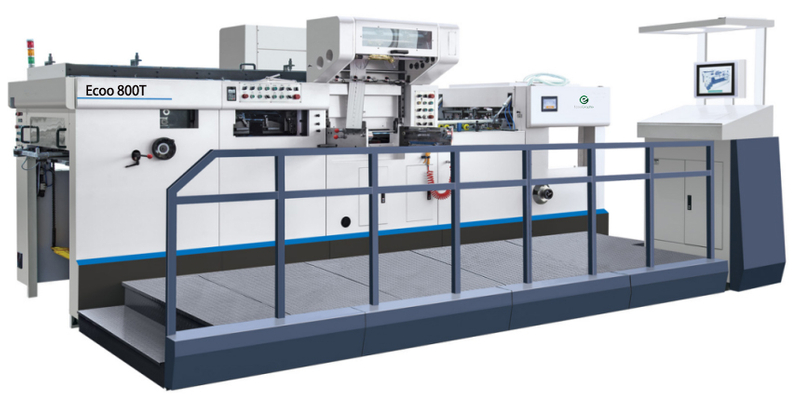

Model | Ecoo-800T |
Max. Sheet size(mm) | 820 x 620 |
Min. Sheet size(mm) | 340 x 280 |
Max. Die cutting size(mm) | 770 x 600 |
Chase inner size(mm) | 820 x 628 |
Cutting plate size(mm) | 826 x 628 |
Max stamping area(mm) | 780 x 600 |
Min.gripper margin(mm) | 7 |
Die cutting accuracy(mm) | ≤±0.1 |
Hot stamping precision(mm) | ≤±0.125 |
Max.pressure(T) | 200 |
Max.machine speed(s/h) | 7000 |
Max hot stamping speed(s/h) | 6500 |
Horizontal foil width | 15~600 mm |
Vertical foil width | 15~780 mm |
Horizontal foil | 2 pcs |
Vertical foil | 2 pcs |
Heating area | 8 pcs |
Temperature range | 50~199℃ |
Max foil diameter(mm) | Φ250 |
Feeding pile height(mm) | 1150 |
Delivery pile height(mm) | 1000 |
Stock range | Cardboard: 0.1～2 mm; corrugated paper: ＜4 mm |
Main motor power | 7.5KW |
Heating area power | 16 KW |
Total power | 40kw |
Dimension(mm) | 5150(+1360) x 2200(+1300) x 2260 |
Weight(T) | 10 |
