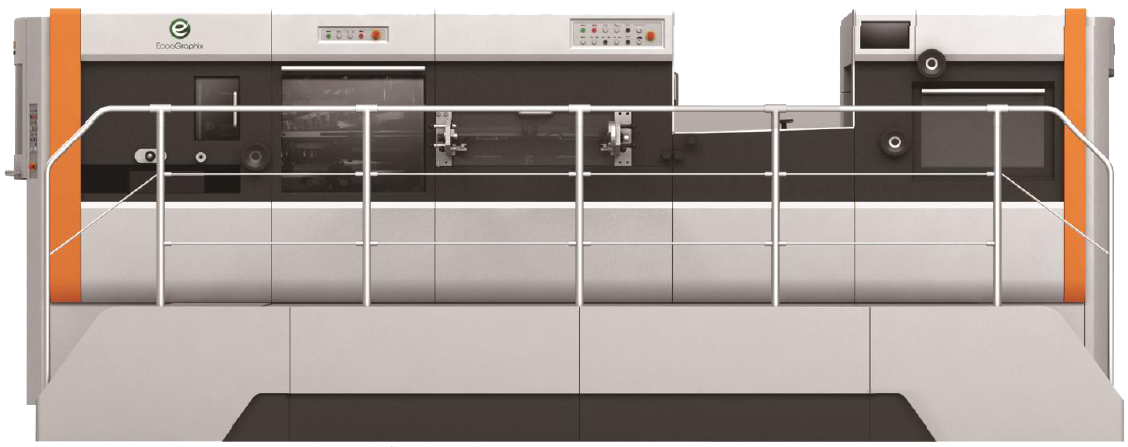

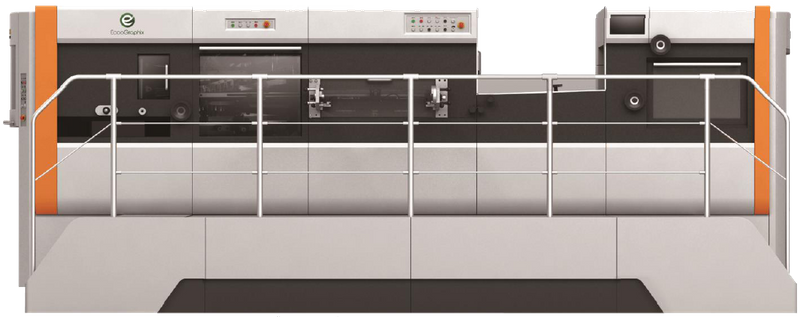

Automatic Die Cutting And Foil Stamping Machine

Maximum sheet(mm)

1060x740

Minimum sheet size(mm)

400x360

Max. Die cutting size(mm)

1040x730

Max. Stamping size(mm)

1020x720

Height of cutting rules(mm)

23.8

Maximum pressure(N)

300x10⁴

Inside chase size(mm)

1120x760

Stock range

Cardboard 90-2000g/m² (E,  B flute)

Min. gripper margin(mm)

4

Maximum speed(s/h)

7500

Max. hologram stamping plate(mm)

6000

The thickness of stamping plate

5

Longitudinal feeding shafts

3 (optional 6)

Transversal feeding shafts

2

Feeding pile height(mm)

1500

Delivery pile height(mm)

1100

Electric heating system

12 zones

Min. foil width(mm)

15

Foil reel core(mm)

25(1”) 76(3”)

Rated power(kw)

46

Air supply

0.8-1.0 MPa, ≥0.6mᶟ/min

Overail dimension(mm)

6000x4530x2250

Weight of machine(kg)

18000
