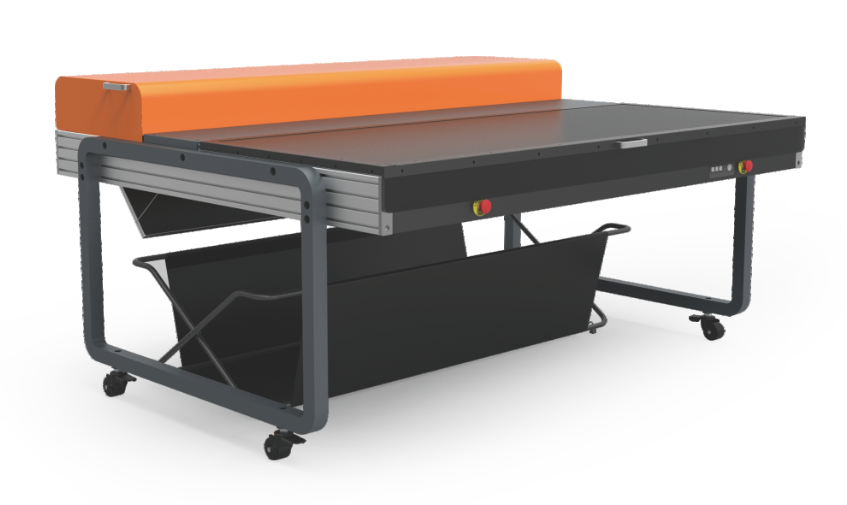

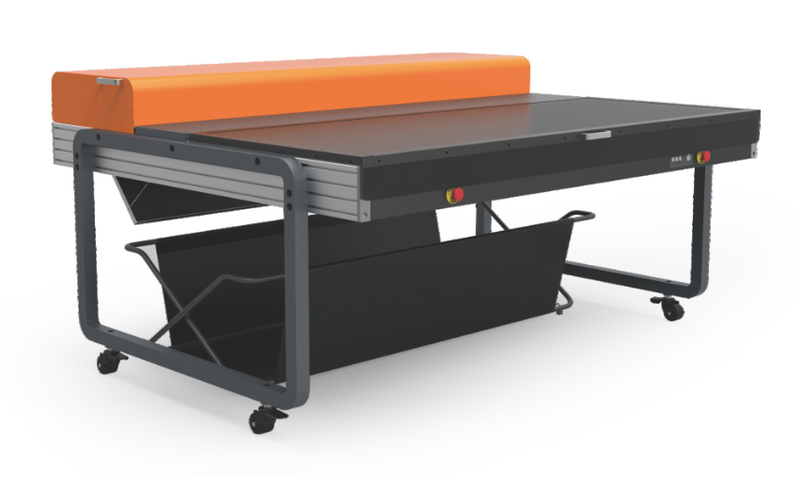

SCU1200 Single Cassette Autoloader

Cassette Type

Single cassette, Loading platform

Plate feeding way

Auto-feed (remove the interleaf paper at the same time)

Plate size

Max.1,470x1180mm, Min.300x400mm

Plate Thickness

0.15mm-0.40mm

Interface

RS485

Plate Loading Quantity

100pcs

Net Weight

330KG

Device Size

2380x2177x1327mm (WxDxH)

Power Supply

Single phase: 200V-240V; Max power (peak value):1100W

Environment

Recommended temperature:21-25℃ Allowable temperature:15-30℃ Humidity: 40%-70%
