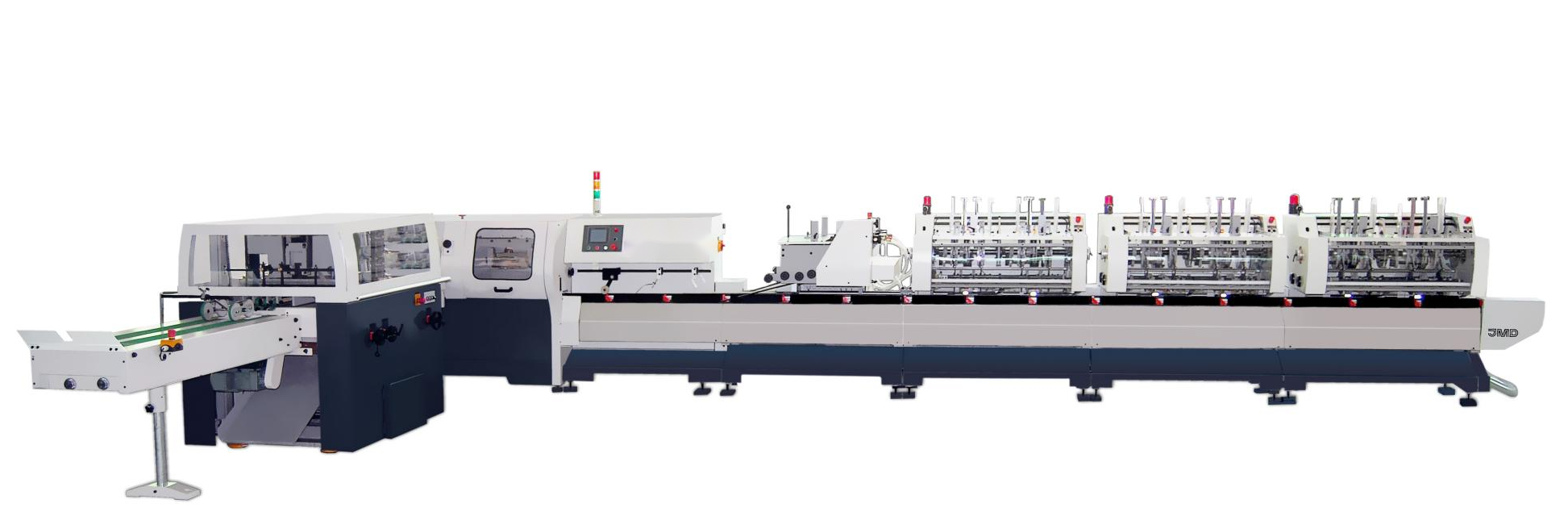

Ecoo Stitchhero SH300 Saddle Stitching System
Product Introduction
8+1 Stations Saddle Stitching Line
Stitchhero SH300 is a cost-effective saddle stitching system from EcooGraphix. It can achieve high efficient production at speeds of up to 8,000 cycles per hour with excellent stitching quality. The clearly arranged, compact design and central touch screen control allow the machine operator to monitor the prodution process conveniently. Simple operation with the space saving layout makes it an ideal choice for commercial runs.
Outstanding Features:
l Easy operation with touch screen control and large viewing windows.
l Short make-ready and quick changeover by employing the position indicators.
l Outstanding product quality with reliable feeding, stitching and trimming process.
l Optional image recognition system can be equipped to detect the wrong signature.
Model | Stitchhero SH300 |
|
Max. Mechanical Speed | 8000c/h | |
Max.Untrimmed Book Size (a*b) | 365*305mm | |
Min. Untrimmed Book Size(a*b) | 110*100mm | |
Max. Trimmed Book Size (a*b) | 360*300mm | |
Min. Trimmed Book Size(a*b) | 105*65mm | |
Max Stitching Thickness (c/2) | 5mm | |
Power Required | 14.5kW | |
Machine Weight | 3820kg | |
Machine Dimensions (L*W*H) | 9725*4500*1400mm |
