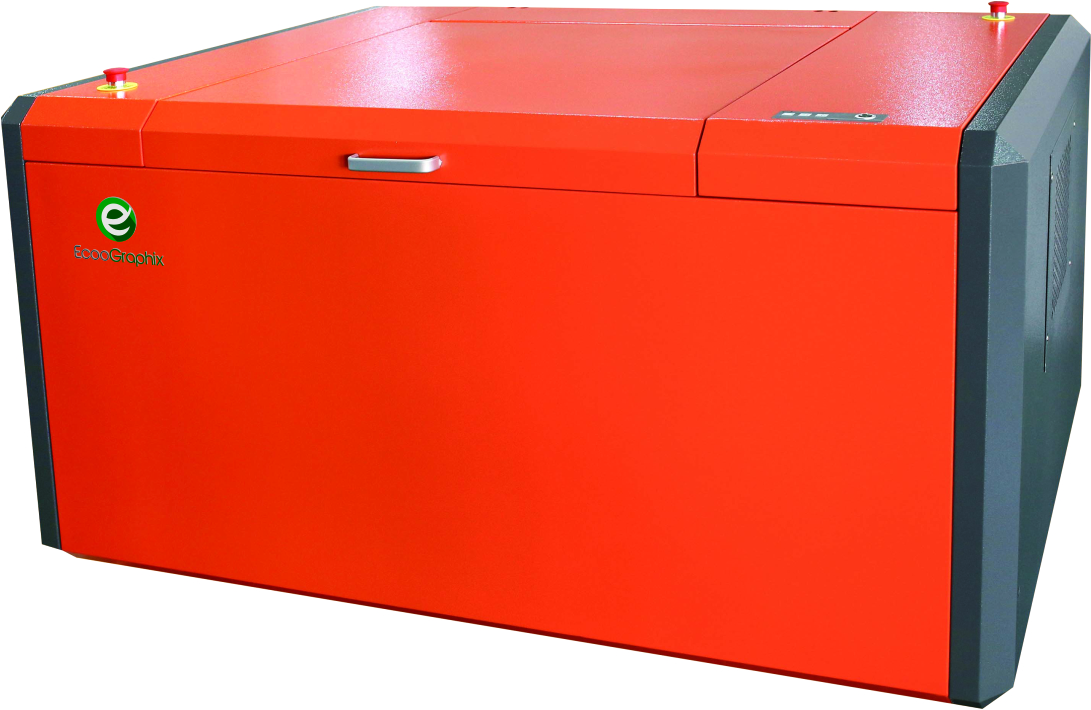

ECOOSETTER FL 800E/S
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | FL 800E | FL 800S |
| Laser Channel | 16CH | 32CH |
| Output Speed | 1.25m/h | 2.5m/h$ |
| Max.output size | 800mm×660mm | |
| Plate Thickness | 0.15mm~2.84mm | |
| Plate Type | Heat corrosivefilm、Digital waterwashed letterpress、 Digital waterwashed flexo plate、 Digital solventwashed flexo plate、 Thermal PS plate* | |
| *Plate thickness is 0.15mm max and adhesive tape is needed on three sides edge | ||
| Application | Label, trademark | |
| Resolution | 4,000dpi | |
| Plate Loading | Manual load and unload | |
| Interface | USB2.0 | |
| Focus Adjust | Autofocus | |
| Laser Power | High power semiconductor laser diode | |
| Device Size | 1630x1170x965mm(WxDxH) | |
| Net Weight | 800kg | |
| Power | 220V/50Hz,60Hz Mainframe 1.5kw,Vacuum 2.0KW | |
| Environment | Recommended Temperature: 18~30C,Humidity: 10%~80% | |
