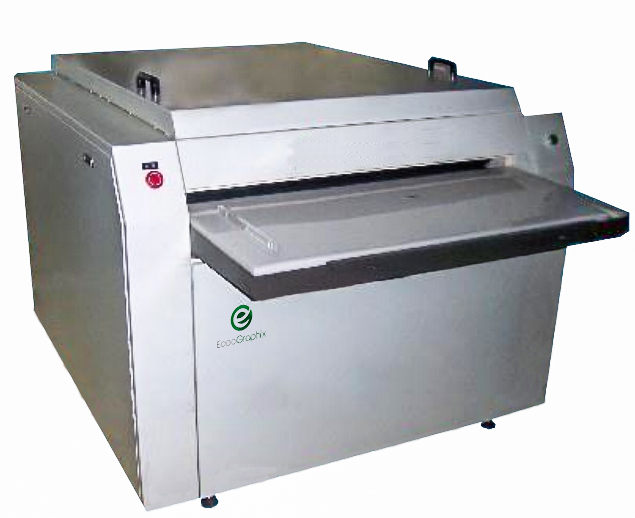

MV-L 850/1200/1350
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specification
Model | ECOO MV-L850 | ECOO MV-L1200 | ECOO MV-L1350 |
Max. width | 860mm | 1200mm | 1350mm |
Min. length | 400mm | 400mm | 400mm |
Plate thickness | 0.15-0.4mm | 0.15-0.4mm | 0.15-0.4mm |
Plate-wash speed | 25S～60S | 25S～60S | 25S～60S |
Developing Capacity | 35L | 40L | 45L |
Glue method | Roll coating | Roll coating | Roll coating |
Dry temperature | 30℃～60℃ | 30℃～60℃ | 30℃～60℃ |
Working power | 220V/50HZ , 3KW | 220V/50HZ , 3KW | 220V/50HZ , 3KW |
Weight | 450kg | 550kg | 650kg |
Machine size | 2900×1200×1100 | 3350×1655×1100 | 3800×1800×1100 |
