Basic Knowledge of Proofing

Proofing is a process in which various types of proofs are produced by reproducing the processed graphic and image information from the prepress workflow through specific methods.

The purposes and functions of proofing include:

① Error detection and correction:

Proofing enables the detection of errors that may occur during prepress image processing and plate-making procedures, allowing timely correction before mass production.

② Contract proof approval:

Contract proofs can be provided to customers for review and approval. They are used to verify the layout design, text content, and color reproduction quality, ensuring that the final printed product meets the expected visual effect and quality requirements.

③ Color standard reference for printing production:

Proofing can also provide a standardized color reference sample for subsequent printing operations, serving as a quality control standard to ensure consistency and accuracy of the final printed products.

The commonly used types of proofs include layout proofs and color proofs.

Layout proofs are used to verify the accuracy of the page layout, ensuring that the content, dimensions, and positioning of text, graphics, and images are correct.

Color proofs are mainly used to confirm the color reproduction effect of the printed output and to evaluate the accuracy and consistency of color reproduction before production printing.

Mechanical Proofing

Mechanical proofing, also known as traditional proofing or press proofing, is a proofing method that uses a printing press or a dedicated proofing machine to produce proofs.

Mechanical proofing closely simulates the actual printing process. It uses the same substrates and printing inks as those used in production printing, with printing conditions maintained as similar as possible to the actual production environment. Therefore, the color reproduction and tonal characteristics shown on the proof sheets can be accurately reproduced during the final printing process.

Mechanical proofing requires dedicated plate making and printing operations, resulting in a complex workflow, longer production time, and higher costs.

Photographic Proofing

Photographic proofing is a method of producing color proofs by applying photographic principles and using color powders or color films that simulate the hues of printing inks, based on separated color films.

The main methods of photographic proofing include color film overlay, color layer overlay, transfer proofing, electrophotographic proofing, and silver halide photographic proofing.

Compared with traditional mechanical proofing, photographic proofing has the advantages of a simpler process and shorter production time. However, its relatively high cost and sometimes unsatisfactory proofing quality have limited its widespread application.

Digital Proofing

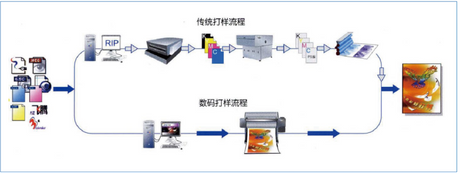

Digital proofing, also known as computer-to-proof (CTP proofing) or digital proofing, is a method of producing color proofs by directly outputting digitally processed prepress data files to a digital printer.

A complete digital proofing system consists of a color inkjet printer or color laser printer, computer workstation, and digital proofing control software.

The digital graphic and image data generated by the prepress system is first imported into the digital proofing workflow software. The software performs color management based on the ICC profiles of the printing press and the digital printer, carries out color conversion, and then sends the processed data to the printer for proof output.

Through ICC-based color management, digital proofing can simulate the color reproduction characteristics of the target printing process, providing an accurate reference for production printing and quality control.

The main advantages of digital proofing include:

① High production speed:

Digital proofing can directly output proofs from digital prepress data without requiring plate making or complex preparation procedures, significantly reducing proofing time.

② Low investment and cost efficiency:

Compared with traditional mechanical proofing, digital proofing requires less equipment investment and has lower operating costs.

③ Simple operation and high consistency:

Digital proofing features a simplified workflow and easy operation. With standardized color management based on ICC profiles, it provides stable and consistent proofing results.

④ Flexible application:

Digital proofing offers high flexibility and can quickly respond to different proofing requirements, making it suitable for various printing processes and production conditions.

⑤ Suitable for processes that are difficult or impossible to proof:

Digital proofing is particularly suitable for printing processes such as gravure printing, flexographic printing, and computer-to-plate (CTP) workflows, where conventional proofing is difficult or impractical to perform. It provides an effective color reference and quality control method for these processes.

Soft Proofing

Computer-based soft proofing is a proofing technology that evaluates the actual output effect of a layout by displaying the expected color reproduction results on a calibrated color monitor.

Through color-managed display systems, soft proofing simulates the appearance of the final printed product on screen, allowing operators to check layout accuracy, image quality, and color reproduction effects before physical proof production or press printing.
