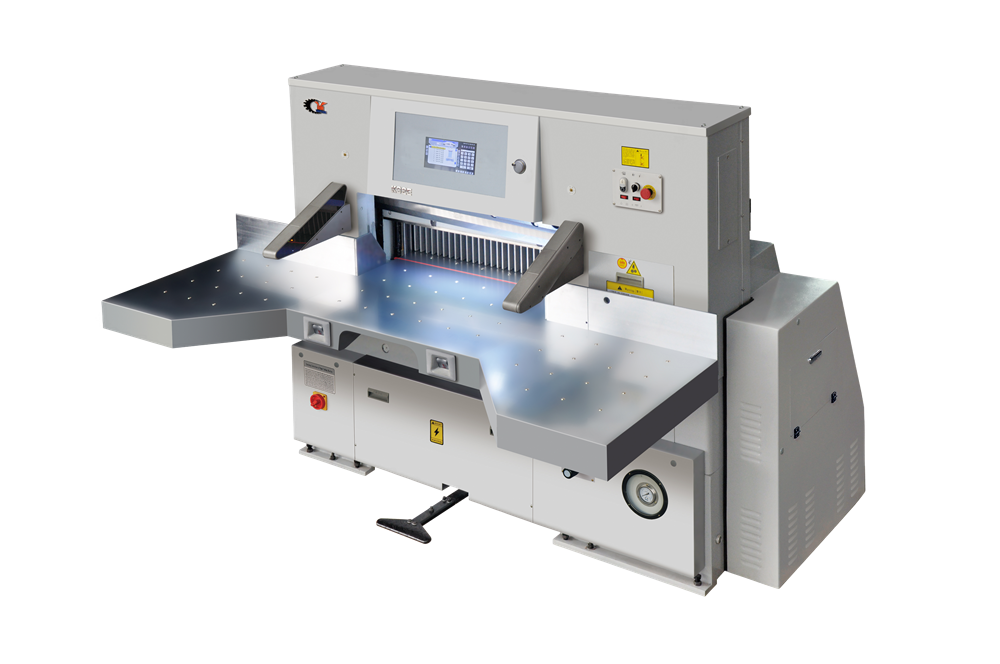

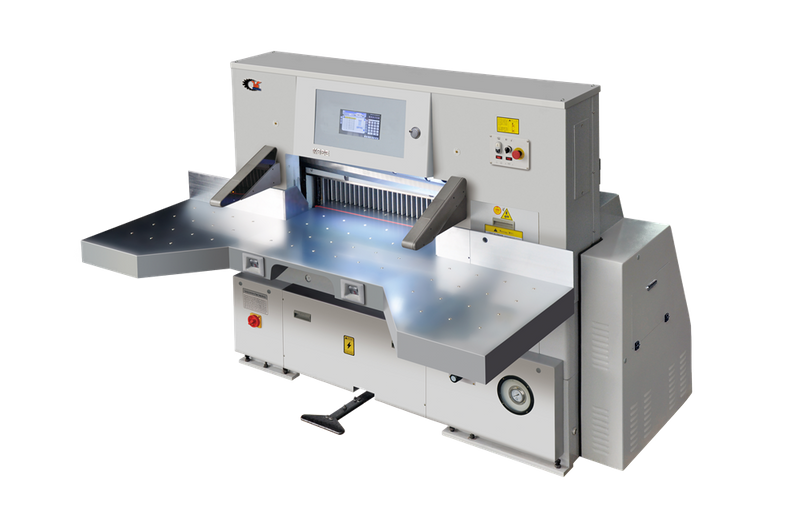

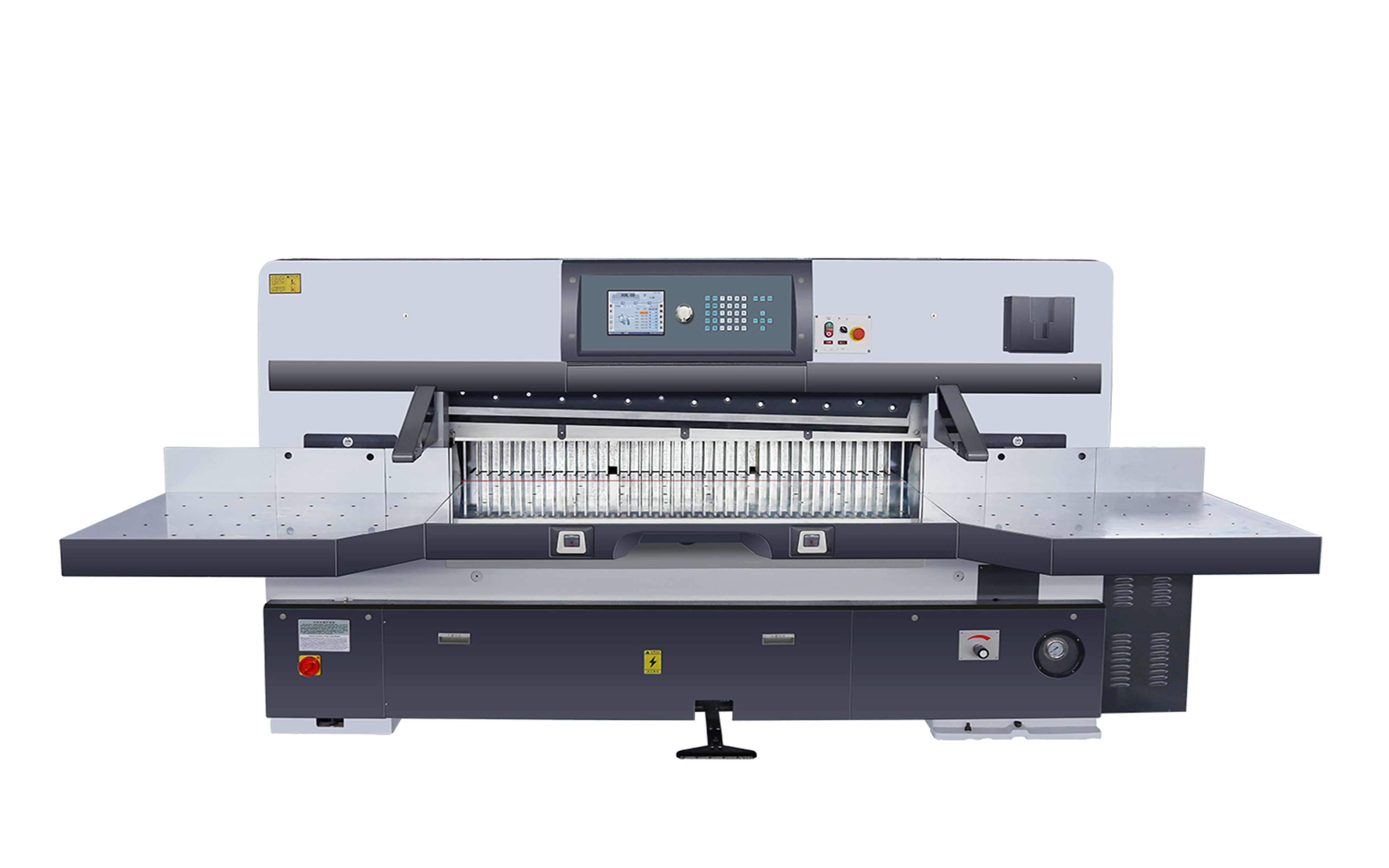

A1 Book Paper Sheet Cutter Guillotine Cutting Machine
a) Usage: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
b) COMPUTER: it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction and do self-protection while wrong operation.
c) Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
d) Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw., which can prolong the machine use life, and can bear the high speed paper delivering.
e) Photo cell: it is equipped with a photo cell safety protection device.
f) Over load protection device; convenient knife changing device.
g) Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
h) Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
i) Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.
j) Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
k) Main electric device are imported from Germany, French, Japan, etc.
Model | K1150DH-10 |
Screen size | 10.4" |
Max. Cutting Width(mm/inch) | 1150/45.3” |
Max. Cutting Length(mm/inch) | 1160/45.7” |
Max. Cutting Height(mm/inch) | 165/6.5” |
Paper Jogger Table Size(mm) | 1150x900 |
Front Table Length(mm) | 730 |
Table Height(mm) | 890 |
Max Pile Height | 1600mm |
Loading Capacity( kg/Ibs) | 200 (440) |
Lift Carrying | 1300KGS |
Power Supply | 365-415V |
Knife speed | 45 cycles/min |
Clamp pressure | 200N~40000N |
Knife thickness(mm) | 139x160x12.7 |
Knife max grind thickness(mm) | 60 |
Main Motor | 4kw |
Net Weight | 4000kg |
Dimension | 2670*2610*1630mm |
Packing Size | 260×154×203(cm) |
