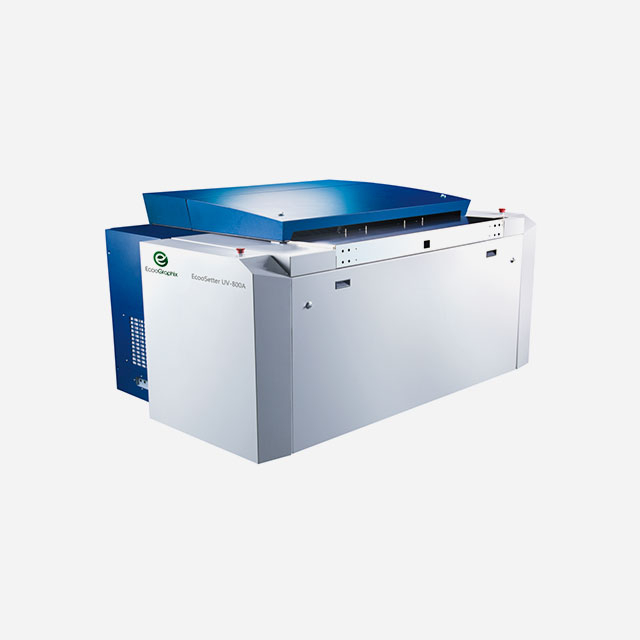

ECOOSETTER 800 SERIES

Exposing Method

External drum

External drum

External drum

External drum

External drum

External drum

Imaging System

32-channel
Discrete 405nm laser

48-channel
Discrete 405nm laser

64-channel
Discrete 405nm laser

32-channel
Discrete 830nm laser

48-channel
Discrete 830nm laser

64-channel
Discrete 830nm laser

Max. Output Speed

17 plates/hour

23 plates/hour

29 plates/hour

17 plates/hour

23 plates/hour

29 plates/hour

Plate Sensitivity

1,030×800mm, 40mJ/cm²

1,030×800mm, 40mJ/cm²

1,030×800mm, 40mJ/cm²

1,030×800mm, 100mJ/cm²

1,030×800mm, 100mJ/cm²

1,030×800mm, 100mJ/cm²

Plate Size

Max.1,163×940mm, Min.400×300mm.

Exposure Size

Max.1,163×924mm, Min.400×284mm.

Plate Thickness

0.15mm–0.3mm

Resolutions

2,400dpi (Standard), 1,200dpi (Option)

Repeatability

±0.005mm

Interface

Optical fiber / GB Ethernet

Plate Loading

Manual load

Net Weight

890kg

Device Size

1,897×1,427×1,142mm (W×L×H)

Power Supply

Single phase: 220v, Peak: 3.8KW, Avg: 1.5KW

Environment

Temp: 15–30°C, Recommended: 21–25°C
Humidity: 40%–70%
