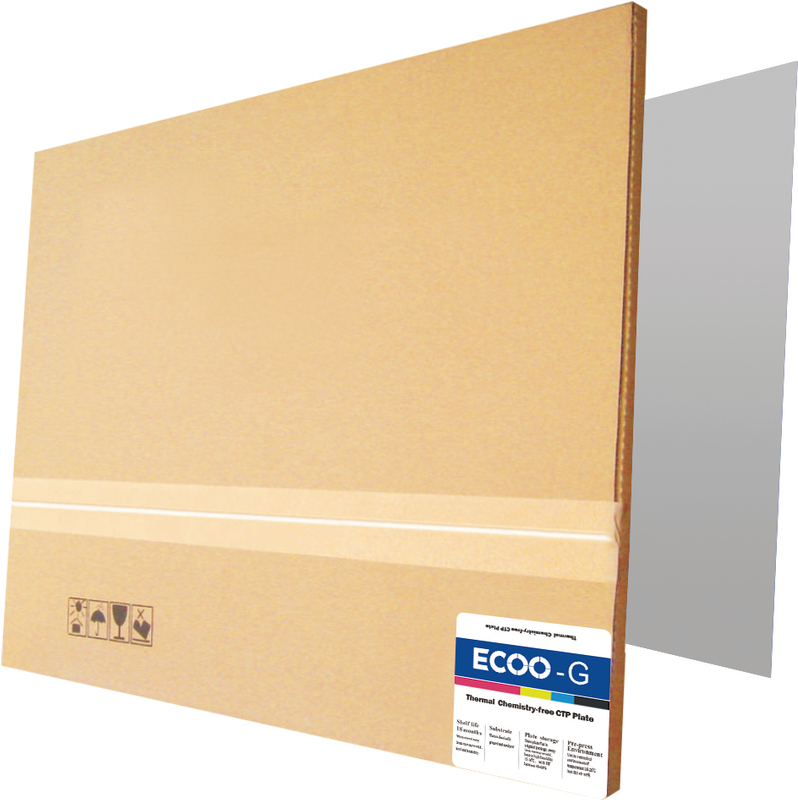

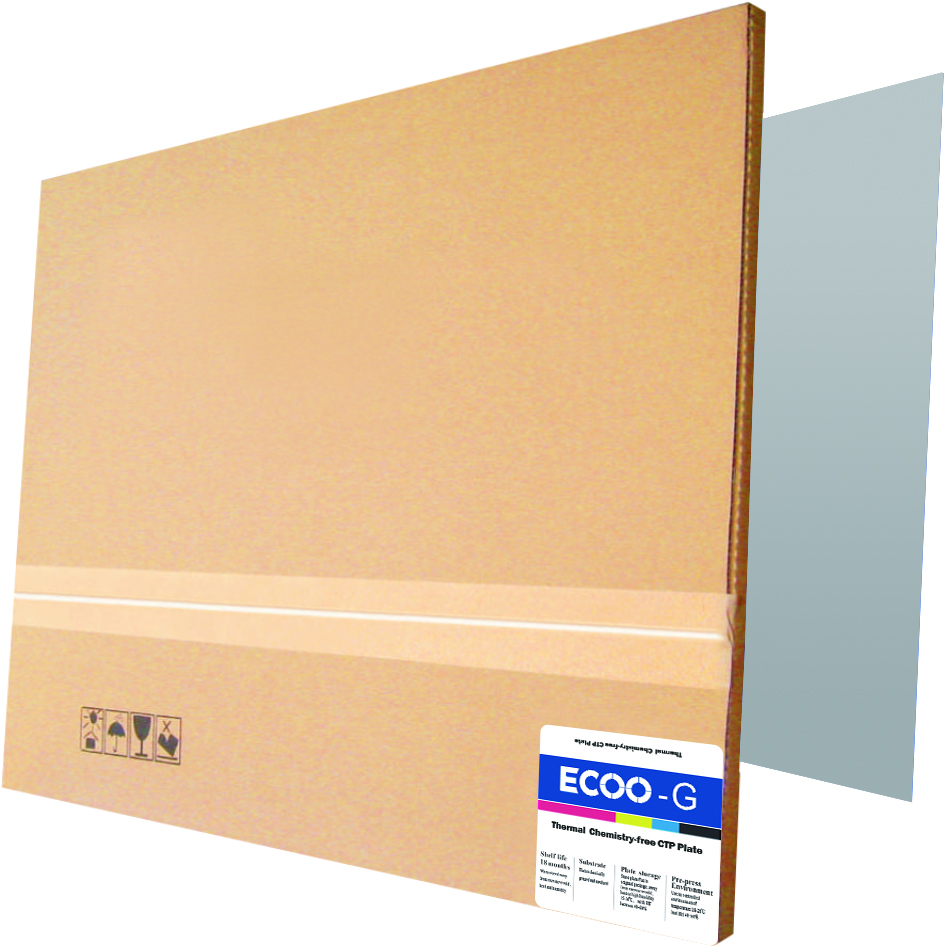

Ecoo-G
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
| Model | Ecoo-G |
| Plate type | Non-ablation thermal-Negative type |
| Application | High grage commercial and newsprinting |
| Substrate | Electrolyte graining and Anodozed AL substrate |
| Thickness | 0.15mm-0.4mm |
| Spetrum scope | 800-850 nm |
| Plate setter | Various dominant thermal platesetters in the market |
| Low-energy imaging | 130-150 mj/m² |
| The period of latent image stablization | ≤7 days |
| Recommended screen method | 1-99@ 200 lpi AM/20U FM and mixture |
| The paper number of start-up | < 50 sheets |
| Safety light | 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light. |
| Processing | Without processing, directly on press |
| Run length | 100000 impressions, actual run length depend on printing conditions |
| Baking | No recomended |
Our Advantages
Application
Suitable for sheet-fed offset press or high speed rotary offset press.
Run length: 100000 impressions
Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions.
Unsuitable to improve run length by baking plates.
Processless plate V.S normal process plate

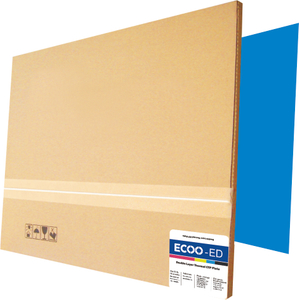

| ECOO-G | V.S | ECOO-ED/ECOO-ES |
| (Thermal Negative Processless plate ) | (Thermal positive process plate) | |
| No processor required, save on the cost of a processor machine | A processor machine required | |
| No chemistry to deal with, save your cost on developer and water treatment | Developer required | |
| Elimination of processing time, more time available for other work | 30 seconds in processor per sheet | |
| Same performance level as Azura & Sonora, but more competitive price | / | |
| Environment-friendly product, has a bright future, policy support | Need extra water treatment device and space to treat wasted developer | |
| Higher price than normal process plate | More economic in price, lower business cost | |
| 20 pcs of starting papers until image come out | less waste in starting paper | |
| Not strong contrast between imaging zone and non-image zone, not easily to recognize image mistake before printing | Strong contrast after imaging is helpful to observe image mistake |
| CTP model Data | Kodak trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 15-17W | 300-320mw | 19.5-21.5W | 80-90 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom |
