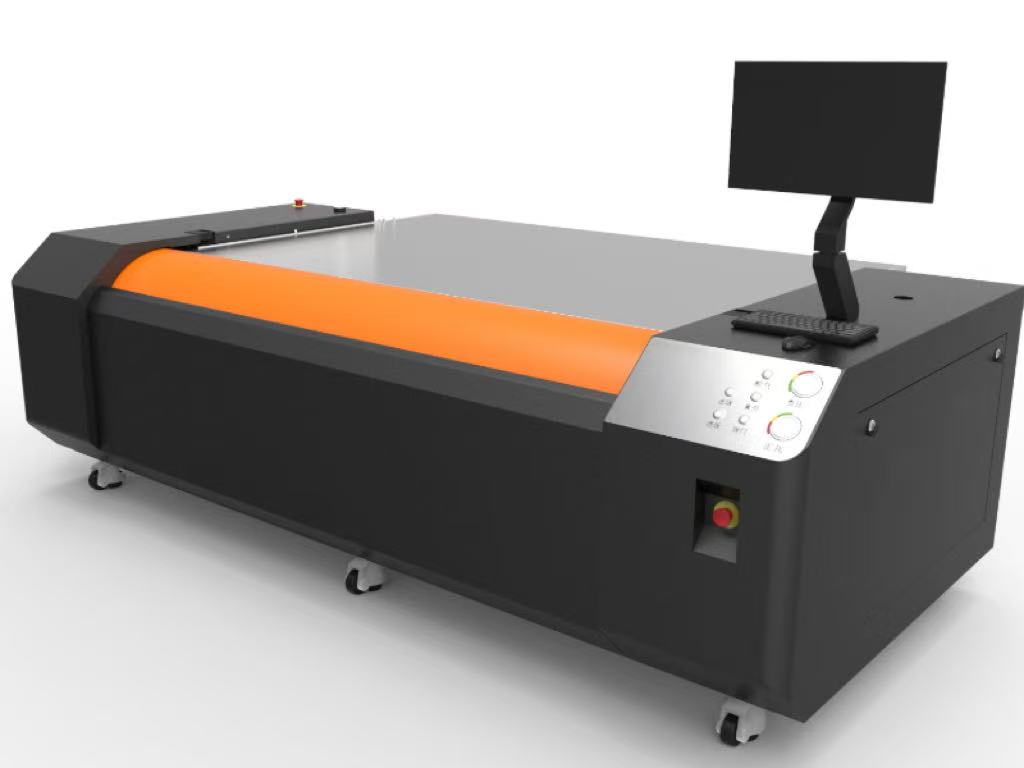

FL 5080S FL 5080F FL 5080C
EcooGraphix
| Availability: | |
|---|---|
| Quantity: | |
Specifications
| Model | FL 5080S | FL 5080F | FL 5080C | ||
| Exposure method | External drum | ||||
| Imaging system | 1064nm fiber laser | ||||
| Engraving area | Maximum1270mm×2032mm(50in×80in) Minimum 200×200mm | ||||
| Resolution | 5080dpi(compatible with 2,540dpi) | 4000dpi | |||
| Productive forces | 3.5m/h(sos0dpi based) | 5m/h(sosodpi based) | 5/h(4000dpi based) | ||
| 50×80in,45min | 50×80in,30min | 50×80in,30min | |||
| Applicable plate type | digital thermal-sensitive flexographic | ||||
| Plate thickness | 0.14mm~6.35mm | ||||
| Publishing method | Automatic/manual loading | ||||
| Equipment size | 2997×1750×1537mm(L×W×H) | ||||
| Equipment weight | 1.5t | ||||
| Power | 380V, total power about 16kw | ||||
| Use environment | Allowable temperature: 15-30C,recommended temperature: 21-25C,relative humidity: 40%-70% | ||||
