Printing Consumables
Film
>

Type

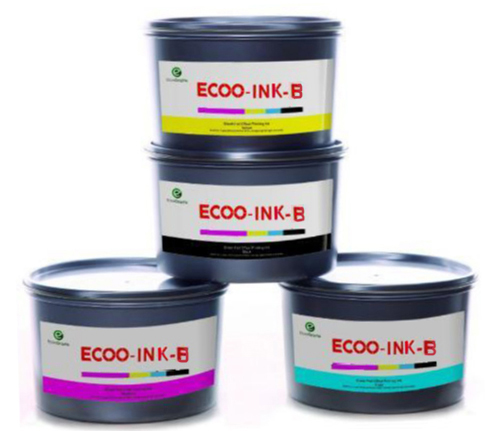

ECOO-INK-B





Features

Printing   speed: 12000rph-15000rph

Environment   friendly

Anti-skinning   performance

Good   water/ink balance

Rich   in printing layer

Clear   and complete in printing dots

Quick-drying   performance, quick setting, quick turn

Packing

1kg/vacuum tin, 12tins/carton

Shelf Life

3   years(from the production date); product against light and water





Application

ECOO-IN-B   printing ink is developed by the latest European technology system. It is   made from polymeric, high-soluble resin and newly-invented paste pigment.   This product is suitable for printing packaging, advertisement, label,   high-quality brochures and decorating products on art paper, coated paper,   offset paper, cardboard, etc., especially suitable for medium and high-speed   printing.



ITEM/TYPE

TACK

VALUE

FLUIDITY

(mm)

PARTICLE

SIZE (μm)

GLOSS

SETTING

TIME   (min)

DRYING

TIME (hr)

SKINNING

TIME (hr)

B

YELLOW

8-9

39±1



12.5

85

4

<   8-10

>40

B

MAGENTA

8.5-9.5

40±1



12.5

75

4

<   8-10

>40

B

CYAN

8.5-9.5

39±1



12.5

75

4

<   8-10

>40

B

BLACK

9-10

39±1



12.5

80

4

<   8-10

>40

Tack   Value

The   value is measured in 1 minute by inkometer at 32 and 400rpm.

Set   Time

Printing   adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc

Condition   of test

Room   temperature 25 , humidity 65%-75%



ITEM/TYPE

Light

Resistance

Heat

Resistance

Acid

Resistance

Alkaline

Resistance

Alcohol

Resistance

Soap

Resistance

B

YELLOW

3-4

5

5

4

4

4

B

MAGENTA

3-4

5

       5

5

4

5

B

CYAN

6-7

5

5

     5

5

5

B

BLACK

6-7

5

5

5

5

5

Light   Fastness

1-8   (weak-strong)

Others

1-5   (weak-strong)



ECOO INK B.pdf
