Printing Consumables
Film
>

Type

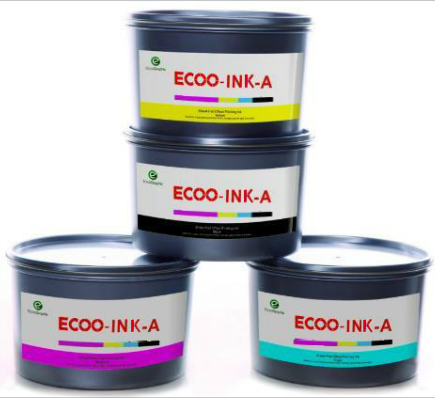

ECOO-INK-A







Features

Printing   speed: 15000rph-18000rph

Anti-skinning   performance

Good   water/ink balance

Rich   in printing layer

Clear   and complete in printing dots

Quick-drying   performance, quick setting, quick turn

No   need to add any additives, ready for use

Packing

1kg   per vacuum can or customize

Shelf Life

3   years(from the production date); product against light and water





Application

ECOO-IN-A   printing ink is developed by the latest European technology system. It is   made from polymeric, high-soluble resin and lately-invented paste pigment.   This product is suitable for printing package, advertisement, label, high-quality   brochure and decorative product on art paper, coated paper, offset paper,   cardboard, etc., especially suitable for medium and high-speed printing.



ITEM/TYPE

  TACK

VALUE

FLUIDITY

 (mm)

PARTICLE

SIZE (μm)

GLOSS

SETTING TIME (min)

DRYING

 TIME (hr)

SKINNING TIME (hr)

A

YELLOW

8-9

39±1



12.5

85

4

<   8-10

>48

A

MAGENTA

8.5-10.5

40±1



12.5

70

4

<   8-10

>48

A

CYAN

9.5-10.5

39±1



12.5

70

4

<   8-10

>48

A

BLACK

9-10

38±1



12.5

75

4

<   8-10

>48

Tack   Value

The   value is measured in 1 minute by inkometer at 32 and 400rpm.

Set   Time

Printing   adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc

Condition   of test

Room   temperature 25 , humidity 65%



ITEM/TYPE

Light

Resistance

Heat

Resistance

Acid

Resistance

Alkaline

Resistance

Alcohol

Resistance

Soap

Resistance

A

YELLOW

3-4

5

5

4

4

4

A

MAGENTA

3-4

5

       5

5

4

5

A

CYAN

6-7

5

5

     5

5

5

A

BLACK

6-7

5

5

5

5

5

Light   Resistance

1-8   (weak-strong)

Others

1-5   (weak-strong)



ECOO INK A.pdf
