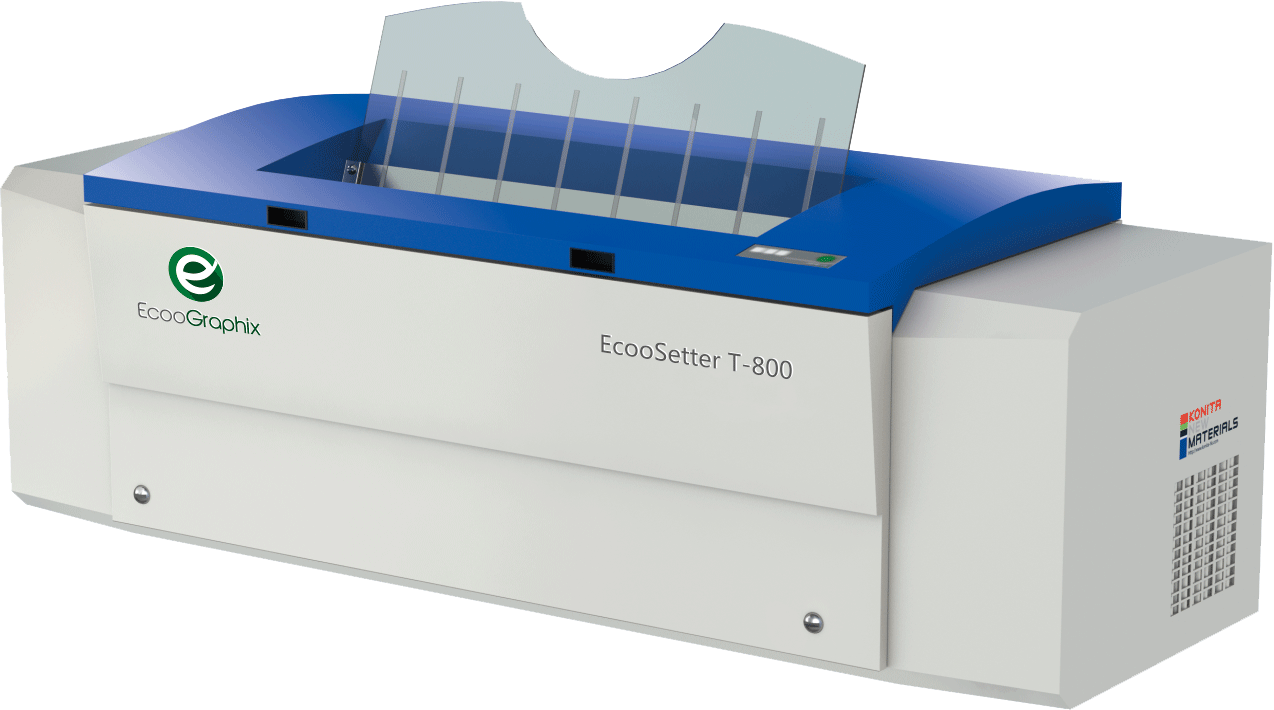

ECOO T-800   Series Thermal CTP Specifications

Model

T-800F

T-800S

T-800E

Exposing Method

External Drum

Imaging System

64-channel

48-channel

32-channel


Discrete 830nm   laser diode



Throughput



28plates/hour

22plates/hour

16plates/hour

1030mm x 800mm,   2400dpi

Plate Sizes

Max.1130mm x   920mm
  Min.300mm x 260mm

Exposing Size

Max.1130mm x   884mm
  Min.260mm x 284mm

Media Type

positive 830nm   thermal CTP plate

Plate Thickness

0.14mm to 0.30mm

Resolution

2400dpi

Repeatability

±5μm(continuous   exposing for 4times or above on the same plate with a temperature of 23 and humidity of 60%)

Interface

USB 2.0

Plate Loading

semi automatic

Net Weight

900kg

Machine Size
  (WxLxH)mm

2530x1050x950

Power Supply

single   phase:220AC,+ 6%,- 10%, power Consumption:4KW

Operation
  Environment

recommended:21-25, Max.18-26,   humidity:40-70%
