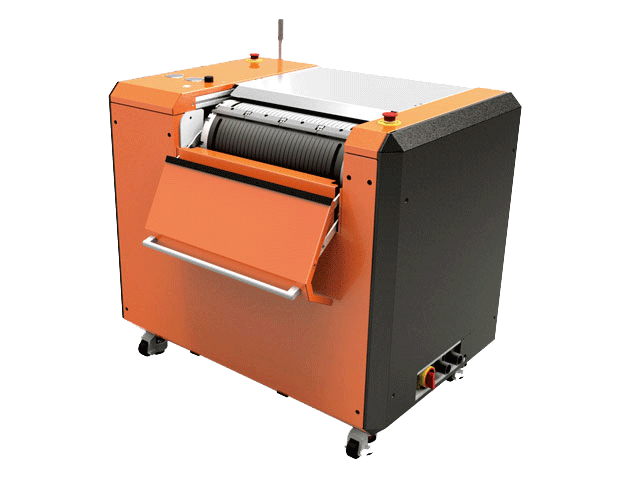

ECOO Flexo CTP Series Technical Specifications | ||
Model | FL-600S FL-600E | |
Laser Channel | 32CH | 16CH |
Output Speed | 2.5 m2/h | 1.25 m2/h |
Max.Breadth | 26'' x 17''/680mm x430mm | |
Min. Breadth | 100mmx100mm | |
Plate Type | Relief Printing Plate, Flexo Printing Plate(Water-developable and Solvent-developable) | |
Plate Thickness | 0.14mm - 1.7mm | |
Application | Label and trademark | |
Resolutions | 4000dpi | |
Plate Loading | Manual load and unload | |
Interface | USB2.0 | |
Focus Adjust | Dynamic autofocus | |
Laser Lifetime | >10000h | |
Device Size | 1087x770x1000 | |
Net Weight | 400KG | |
Power | Single phase: 220V/50HZ, 60HZ CTP Machine: 1.5KW, Vacuum: 1.1KW | |
Environment | Recommended temperature: 18-30℃ humidity: 10%- 80% |
