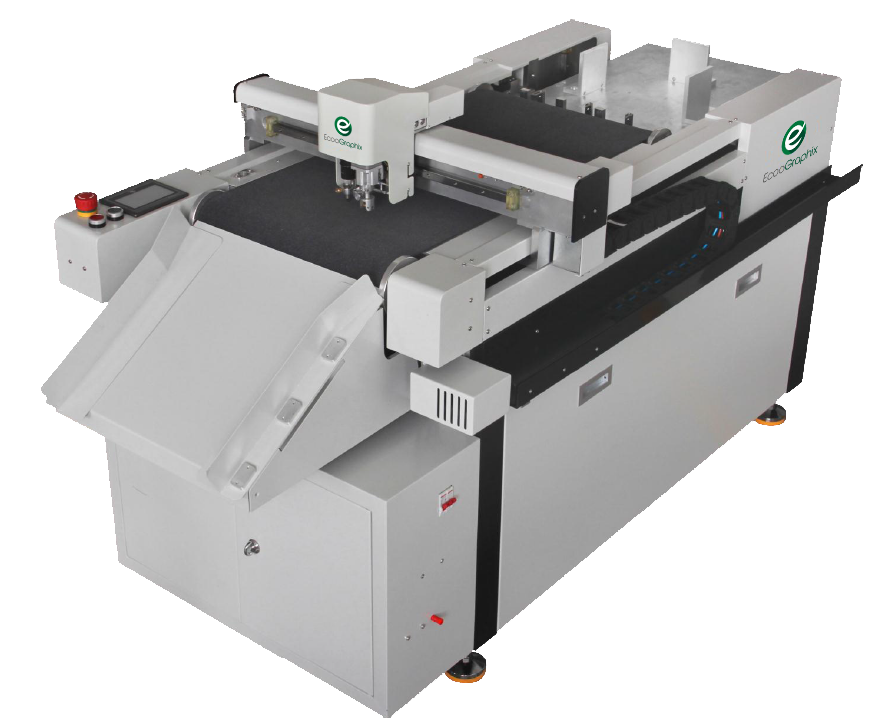

Model

JW0604

Auto feeder sheet seperation

Air powered, variable jet stream seperated

Feeding system

Vacuum feed with clamps mounted on gantry

Sheet alignment

Positioning bars

Max.sheet size

600x400mm

Min.sheet size

210x297mm

Mountable tools

Cutting through knife, kiss cut knife, creasing wheel, camera

Cutting system

M5 control system

Blade

Tungsten steel

Productivity

15-45 seconds per SRA3 sheet(average 30 seconds-depending on complexity)

Max.cutting speed

800mm/s

Cutting thickness

≤1.5mm(depend on material)

Repear accuracy

±0.1mm

Software

JWCS productivity controller

Connection

LAN

Camera registration

Industrial CCD registration system

Registration mark

Circle or dot of 3mm -5mm(at least 2: one at top, another at bottom)

Voltage

220V±10%/50HZ

Power

4KW

Certificate

CE/SGS

Size

2250x800x1100mm
